What is a combiner box? In solar power systems, a PV combiner box plays a critical role. It simplifies the connection of multiple solar panel arrays to the inverter. It guarantees efficient power management, safety, and scalability.
To choose the right PV combiner box supplier, you should have a basic idea of the product. Follow the content and explore the key functions of a PV combiner box, why it’s necessary, and how to choose and install the right one for your solar system.

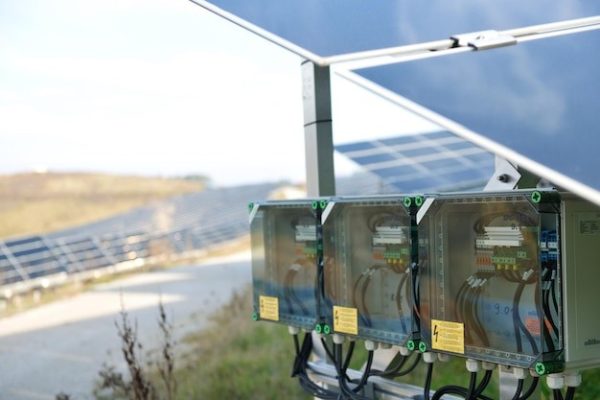

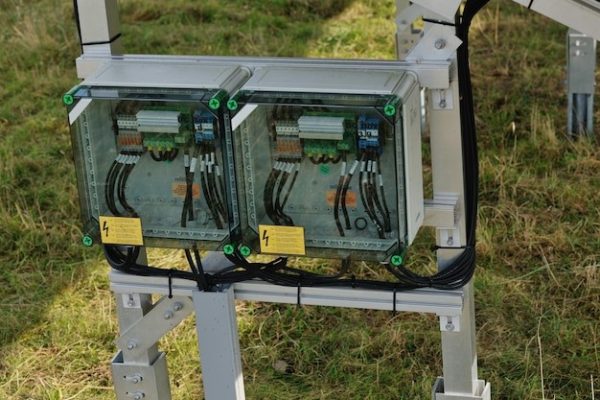

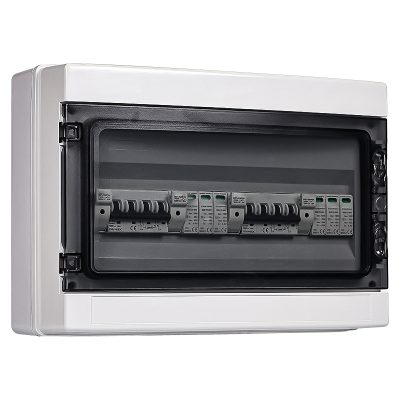

A PV combiner box (also a solar combiner box or DC combiner box) is a necessary part of solar power systems. It aggregates the DC output from many solar panels or strings into a single connection that leads to an inverter. The inverter then converts the accumulated DC power into AC for use in homes, commercial premises, or the grid at large.
Basically, the PV combiner box simplifies the system’s wiring by consolidating the DC output from multiple solar panels or strings into a manageable form before sending the current to the inverter. Its critical role ensures efficient energy production and contributes to the overall effectiveness of the solar power system.
When multiple solar panels or strings of panels are used in parallel, their current output combines while the voltage remains constant. The PV combiner box pools this current, creating a simplified, singular output that is directed to the inverter.
Linking the positive and negative outputs of multiple solar panel strings, the combiner box reduces the number of cables and connections needed between the solar panels and the inverter, streamlining the process and reducing potential errors.
The PV combiner box is installed with built-in safety facilities to protect the system from electrical faults. With DC fuses, circuit breakers, and surge protection devices, the combiner box ensures that overcurrent, short circuits, and voltage spikes will not damage the solar equipment or cause fires.
In larger solar systems with multiple panel strings, the wiring can become complex. The PV combiner box streamlines the wiring by consolidating the multiple-panel wiring into a single connection, reducing the overall cabling and eliminating potential connection mistakes.
By pooling the outputs from each panel string, the combiner box minimizes voltage drop and power loss that can occur from longer wiring distances. This contributes to the overall efficiency of the solar power system, ensuring that more of the generated energy is utilized for powering the property or fed into the grid.
High-end PV combiner boxes have monitoring systems that allow users to track the voltage and current of each panel string in real time. This monitoring function helps detect faults like sudden drops in current or abnormal voltage fluctuations.
The PV combiner box simplifies the solar power system installation and maintenance. An orderly box that combines the wiring speeds up the installation.
Plus, maintenance becomes easier because technicians have access to all of their connections with protective devices in one place.
Equipped with fuses, circuit breakers, and surge protectors, the PV combiner helps real big time when system problems occur. By guarding against trouble such as overcurrent, short-circuit, and lightning strikes, it actually keeps all parts of the system operating safely.
The combiner box keeps the cabling in good order. With big solar installations, it reduces cable clutter to something more manageable–which in turn makes troubleshooting easier and less expensive. Additionally, an orderly system means reduced system failure rates as a whole
By reducing voltage drop and lowering power loss, the combiner box is important in improving system efficiency. It ensures that the DC current from solar panels goes to inverters with only a tiny loss, making the solar system performance much better.
The PV combiner box is scalable. If you want to in the future add more solar panels, the box allows you to easily add new strings or panels without having to redesign the whole system.
The size of the combiner box will be determined by the number of solar strings your system requires. A combiner box typically has some number of inputs (for each panel string) and outputs. (It also connects to the inverter.) Make sure it has enough inputs to handle how many solar panels you intend to tie together.
Make sure the combiner box has the correct voltage and current capabilities needed for your solar system. For example, the combiner box needs to be able to pass 40V at 8A from each solar panel on it. The combined total current must not exceed this amount.
Choose a combiner box with overcurrent protection for each string. This will prevent damage to your equipment if there is a short circuit or excess load.
Opt for a combiner box with SPDs to guard against lightning strikes or other high-voltage spikes.
Some advanced combiner boxes offer real-time monitoring of voltage and current which is crucial for system maintenance and to pick up on potential problems early.
Ensure that the combiner box is built from durable, weather-resistant materials, as it will be installed outdoors or in difficult environments.
Connect the positive and negative terminals of each solar panel string to the appropriate inputs on the combiner box.
Once all strings are connected, wire the DC output from the combiner box to the inverter or charge controller.
Ensure the grounding bar is properly connected to dissipate excess voltage and ensure safe operation.
The PV combiner box is an essential component in modern solar power systems. It simplifies wiring, ensures safety, and improves efficiency.
Whether for a small residential system or a large commercial installation, the combiner box helps aggregate and protect solar panel outputs. Choosing the right combiner box from solar combiner box manufacturers and ensuring proper installation is key to long-term success.
By including the right protection features and following best practices for installation and maintenance, you are sure to get the efficient performance of solar systems that provide clean energy for years.
OOHMAGE stands out as a reliable and innovative electrical equipment supplier, offering a comprehensive range of products and services tailored to meet the diverse needs of its clients.
With a focus on quality, and continuous improvement, OOHMAGE is well-positioned to support your electrical equipment requirements, ensuring safety, efficiency, and reliability in every project.
We are an ISO 9001:2015 certified electrical equipment supplier. With the CE marking, our products are widely used in various applications and ensure high-level safety. Contact us today and get more information on our electrical equipment!
A PV combiner box is used to combine the output of multiple solar panel strings into a single connection sent to the inverter. It simplifies the wiring, protects the system from overcurrent, and ensures safe and efficient energy transfer from solar panels to the inverter for conversion into AC power.
By consolidating the outputs from multiple solar panels, a PV combiner box minimizes voltage drop and reduces the cabling length. This ensures that more power generated by the solar panels reaches the inverter for conversion to usable energy, improving the overall system efficiency.
You should use a PV combiner box if your system has multiple solar panel strings or if you’re working with high-power systems that require more complex wiring. It’s particularly useful when you have multiple MPPT charge controllers or want to improve safety and simplify maintenance in large-scale solar installations.
The size of a PV combiner box depends on the number of solar panel strings. Make sure the box can handle the voltage and current output from your system, and choose one with enough inputs to connect all the panel strings.
It’s important to follow the manufacturer’s guidelines and ensure the system is de-energized before making connections when installing a PV combiner box.
For small solar systems with a single solar panel string, you do not need a PV combiner box. However, for larger systems with multiple strings, a combiner box is essential to organize the wiring, provide protection, and improve system efficiency.
Yes, SPDs in the PV combiner box can protect your system from high-voltage surges caused by lightning or other electrical events. These devices absorb the surge and prevent damage to sensitive equipment.
