When it comes to protecting your home or business’s electrical system, choosing the right circuit breaker is essential. Two of the most common types of breakers used in residential and commercial applications are single-pole and double-pole breakers. But which one is right for your electrical system? This guide will help you understand the differences in single pole vs double pole breakers to determine which one is right for your electrical system.
| Feature | Single Pole Breaker | Double Pole Breaker |
|---|---|---|
| Number of Hotlines | 1 (single hot wire) | 2 (two hot wires) |
| Voltage | 120V | 240V |
| Amperage | 15–60 amps | 15–100 amps |
| Circuit Type | Standard circuits (lighting, outlets) | High-power appliances (dryers, ovens, AC) |
| Typical Use | Lights, outlets, small appliances | Large appliances, electric heaters |
| Size | Smaller, 1 slot in the panel | Larger, 2 slots in the panel |
| Installation Complexity | Easier to install | More complex installation |
| Protection | Protects lower power circuits | Protects high-power, 240V circuits |
| Tripping Mechanism | Single-pole trips when overload occurs | Double-pole trips when overload occurs across both hot lines |

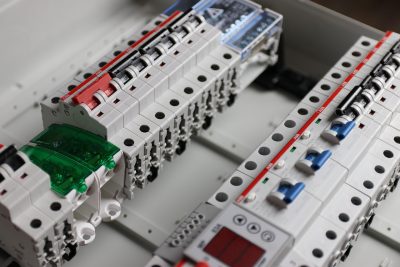

A single-pole breaker is designed to protect a 120V electrical circuit. It is the most commonly used breaker in residential homes and works by controlling the flow of electricity to a single circuit. A single-pole breaker is installed in the electrical panel, where it connects to the circuit and allows or cuts off the flow of electricity based on current demand.
A single-pole breaker provides protection by disconnecting the electrical circuit when it detects an overload or short circuit. It is connected to a 120-volt circuit, typically used for lighting, outlets, and low-power appliances. When the circuit exceeds its amperage rating, the breaker trips, stopping the flow of electricity to prevent overheating and fire hazards.
Single-pole breakers are widely used in residential settings for lighting circuits, standard outlets, and small appliances like microwaves or toasters. They are also commonly used in branch circuits, which supply power to individual rooms or sections of the house.
| Pros | Cons |
|---|---|
| Cost-effective: Single-pole breakers are generally less expensive than double-pole breakers, making them ideal for smaller circuits. | Limited Power Capacity: Single-pole breakers are only rated for 120 volts, making them unsuitable for high-power appliances or larger devices. |
| Simplicity: Their straightforward design makes installation and replacement easier for homeowners and electricians alike. | Not Suitable for Heavy-duty Appliances: Devices like electric dryers, stoves, or central air conditioning systems require a double-pole breaker for adequate protection. |
| Ideal for Low-power Circuits: They are the perfect solution for protecting basic household circuits that don’t require high voltages. | Lower Amperage: Typically limited to 15-60 amps, which makes them unsuitable for high-demand circuits. |
A double-pole breaker is designed to protect 240V circuits and is used for high-powered appliances that require more voltage than the standard 120V circuits. Double-pole breakers are typically installed in the main service panel and connect to two separate 120V lines, effectively providing 240V of electricity. They are essential for larger equipment and appliances that need a higher amperage, such as air conditioners, water heaters, and dryers.
A double-pole breaker functions in much the same way as a single-pole breaker, but it controls a 240-volt circuit instead of a 120V one. It’s used in situations where higher electrical demand is needed, such as for large appliances. A double-pole breaker is connected to two hot wires, providing 240 volts of electricity to power high-demand systems.
Like a single-pole breaker, a double-pole breaker will trip when it detects an overload or short circuit, thereby interrupting the flow of electricity and preventing potential damage.
Double-pole breakers are typically used for high-voltage appliances and systems that require 240 volts. These include major appliances like ovens, dryers, air conditioning units, and electric water heaters. They can also be used in electrical subpanels to provide dedicated protection for high-demand circuits.
| Pros | Cons |
|---|---|
| Handles Higher Voltages: Double-pole breakers are designed to handle 240 volts, making them essential for larger appliances and machinery. | Higher Cost: Double-pole breakers are generally more expensive than single-pole breakers due to their higher power capacity and complexity. |
| Prevents Overload: By disconnecting the circuit when current exceeds safe limits, they protect expensive equipment and the entire electrical system. | More Complex Installation: Their installation requires more space in the electrical panel and can be more challenging for DIYers to install. |
| Versatility: Double pole breakers can be used for both home and commercial applications, ensuring proper protection for a variety of electrical loads. | Larger Size: Double-pole breakers are physically larger than their single-pole counterparts, which may require more room in the breaker box. |
Voltage Handling
The primary difference between single-pole and double-pole breakers lies in the voltage capacity. Single-pole breakers handle 120 volts, which is the standard voltage for most household circuits. On the other hand, double-pole breakers handle 240 volts, making them necessary for high-powered appliances that require more electricity to operate.
Ampacity
Both single-pole and double-pole breakers come in various amp ratings, typically ranging from 15 to 60 amps for single-pole breakers and 15 to 100 amps for double-pole breakers. The amp rating indicates how much current the breaker can safely handle before tripping. For larger appliances, double-pole breakers are often required to manage the higher amperage.
Size and Installation
Double-pole breakers are physically larger and take up two slots in the breaker panel, while single-pole breakers take up only one slot. As a result, installing double-pole breakers may require more space in the electrical panel, and their installation is more complex. Single-pole breakers are simpler and typically easier to replace or install.
A single-pole breaker should be used when you’re working with standard 120V circuits in your home or office. These are the most common circuits and typically power lights, outlets, and small appliances. Some typical scenarios for single-pole breaker use include:
Choosing between a single-pole and a double-pole breaker depends on the appliances and devices in your system. For most basic household needs, a single-pole breaker will suffice. However, if you’re powering heavy-duty appliances or need a 240V circuit, a double-pole breaker is necessary. Consider the following:
Before installing any breaker, ensure the power is completely shut off. Turn off the main power supply to avoid electrical shock or injury. If you’re unfamiliar with electrical work, consider hiring a licensed electrician.
Both single-pole and double-pole breakers play crucial roles in protecting your electrical system. Single-pole breakers are ideal for low-power circuits, while double-pole breakers are necessary for high-power appliances. By understanding their differences and applications, you can make the right choice for your electrical needs. Always consult an electrician if you’re unsure or need professional installation.
If you’re looking for miniature circuit breakers (MCBs) for your electrical panel, check out our high-quality MCBs designed to ensure your home or business is protected. Contact us today to find the perfect breaker for your needs!
