Choosing the right circuit breaker starts with your system—not the catalog.
To make a correct selection, you need to define voltage, fault current, load behavior, and application risk before you look at amp ratings or breaker types. Skip those steps, and even a “high-quality” breaker can cause nuisance trips, code violations, or costly downtime.
In this guide, we walk you through a practical, step-by-step framework used in commercial buildings, industrial facilities, OEM equipment, and infrastructure projects. You’ll learn what information must be defined first, how different applications change priorities, and how to match breaker characteristics to real-world load behavior.
You need four pieces of system information before selecting any circuit breaker: voltage, fault current, load type, and installation environment. Without these, every downstream decision is guesswork.
Start with system voltage and frequency. Most North American commercial systems run at 120V, 208V, 240V, or 480V, while industrial systems may go higher. DC systems are a separate case—AC-rated breakers are not designed to interrupt DC faults and can fail violently if misapplied.
Next, define the load type, because it directly affects how the breaker trips. Continuous loads like lighting and HVAC behave very differently from motor loads with high inrush current. If you don’t account for that inrush, nuisance tripping is almost guaranteed—even when the breaker is technically “rated correctly.”
Then, available short-circuit current, often called fault current, is non-negotiable data. Your utility or engineer must calculate this value. A breaker with insufficient interrupting capacity cannot clear a fault safely. The result is arc flash, equipment destruction, or fire.
Last, installation environment matters. Ambient temperature affects ampacity. Enclosure ratings (NEMA 1, 3R, 4X) depend on moisture, dust, and corrosive atmospheres. Accessibility impacts maintenance scheduling and replacement planning.
Document all four parameters before evaluating breaker options. Missing data makes wrong decisions very likely.
Different applications fail in different ways. Before you compare breaker types or trip units, you need to understand what risk matters most in your application—personal safety, uptime, equipment protection, or regulatory compliance. That priority determines which breaker features actually matter and which ones don’t.

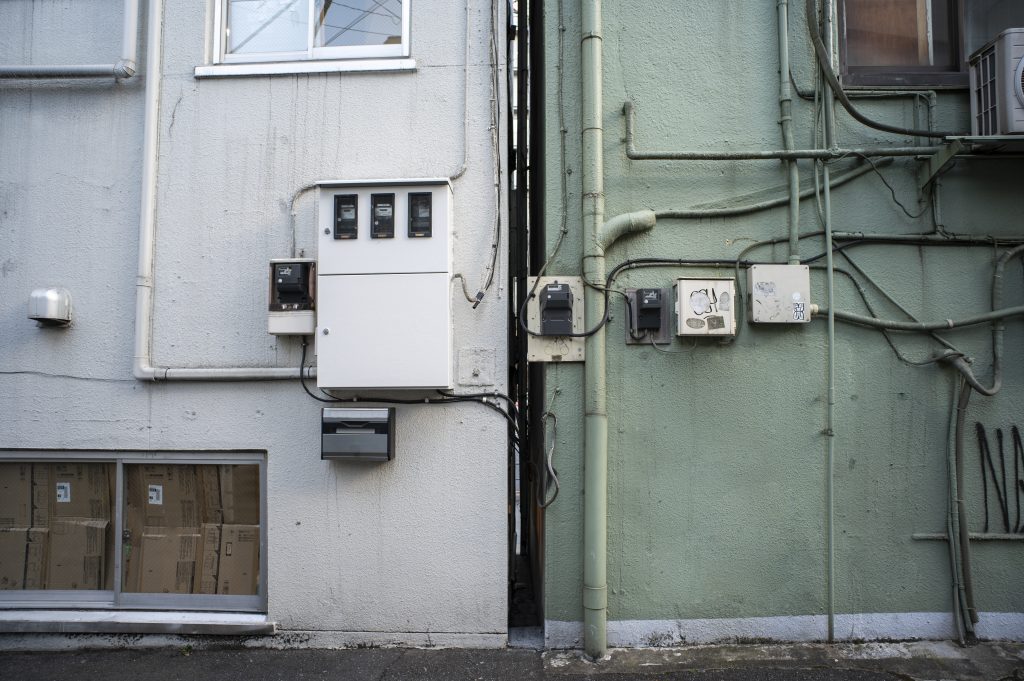

In residential and temporary power systems, personal safety is the primary concern.
Arc fault circuit interrupters (AFCI) and ground fault circuit interrupters (GFCI) target the most common residential hazards: electrical fires from damaged wiring and electric shock from ground faults. Electrical codes mandate these devices in specific locations, leaving little room for interpretation.
Most residential protection occurs at the branch circuit level. Loads are predictable, fault currents are relatively low, and coordination requirements are limited. In this environment, code compliance and correct device placement matter far more than advanced adjustability.
Commercial buildings prioritize continuous operation and code compliance.
Lighting, HVAC, and plug loads often run for long hours, sometimes continuously. Breakers must tolerate sustained current without thermal degradation, especially on circuits sized for continuous loads. Clear labeling, accessible panels, and standardized equipment simplify maintenance and reduce service downtime.
Panel compatibility becomes especially important in commercial facilities. Mixing breaker brands within the same panel complicates future replacements and can create listing and warranty issues. Standardizing on a single manufacturer per facility avoids long-term procurement problems.
In industrial production, downtime matters more than hardware cost.
Motor starting currents commonly reach six to eight times normal running current. If the breaker’s instantaneous trip does not tolerate this inrush, it may open during normal startup. When that happens, the issue isn’t breaker quality—it’s a mismatch between load behavior and trip characteristics.
Selective coordination is critical in production systems. A fault on one machine should not shut down an entire line. Coordination studies ensure that only the nearest upstream device trips, limiting disruption and simplifying troubleshooting.
Infrastructure systems are designed around predictable behavior and high availability.
Facilities like data centers, hospitals, and water treatment plants cannot tolerate unexpected outages. These systems often require redundant protection, carefully coordinated breakers, and clearly documented settings that remain traceable for decades.
In these applications, documentation is not optional. Breaker settings, coordination studies, and maintenance records must remain accessible throughout the system’s service life, which may exceed 20 or 30 years.
OEM applications focus on device-level protection and regulatory alignment.
Breakers integrated into equipment protect the machine itself, not the building distribution system. Certification requirements depend on target markets—UL-listed components for North America and IEC-compliant devices for many international markets. These requirements must be considered early in the design process.
Space constraints, DIN rail formats, and shipping weight often influence breaker selection. Choosing globally recognized, compact breaker designs simplifies certification and reduces redesign risk when exporting equipment.
Breaker ratings must match how a load actually behaves, not just its steady-state current.
Source: Inrush Current vs Steady-State Current
Many selection problems start with a simple assumption: if the amp rating matches the nameplate load, the breaker will work. In practice, load behavior—how current changes during startup, operation, and cycling—matters far more.
Load Type vs Breaker Selection Considerations
| Load Type | Typical Behavior | Key Risk | Breaker Selection Focus |
| Continuous loads (lighting, HVAC) | Long-duration current | Thermal buildup | 125% rule, thermal rating |
| Motor loads | High inrush at startup | Nuisance tripping | Magnetic trip tolerance |
| Intermittent loads | Cyclic operation | Peak misjudgment | Duty cycle verification |
| Nonlinear loads (VFD, LED) | Harmonics | Excess heating | RMS current, derating |
Continuous Loads
Continuous loads operate for extended periods, which means heat management becomes the limiting factor.
The NEC defines a continuous load as one that runs for three hours or more. These loads require breakers rated at 125% of the continuous current. For example, a 40A continuous load requires a minimum 50A breaker. This margin is not extra protection—it allows the breaker to operate without thermal stress over long durations.
Lighting systems, HVAC equipment, and certain process loads typically fall into this category. Undersizing the breaker here often leads to gradual thermal degradation and nuisance trips, especially in warm environments.
Motor Loads and Inrush Current
Motor loads challenge breakers in a very different way.
Source: Thermal vs Magnetic Trip Response
During startup, motors commonly draw six to eight times their normal running current for several seconds. If the breaker’s instantaneous trip is set too low, it may open during normal startup. When that happens, the breaker is doing exactly what it was designed to do—the issue is that it was selected without accounting for inrush behavior.
In these cases, the magnetic trip characteristic must tolerate startup current while the thermal element continues to protect against sustained overloads. This balance is critical in compressors, conveyors, pumps, and production machinery.
Duty Cycle and Intermittent Loads
Not all loads run continuously, and that distinction matters.
Intermittent loads cycle on and off, allowing breakers to cool between operations. In some cases, this allows higher peak currents without exceeding thermal limits. However, this is not something to estimate casually. Proper duty-cycle analysis is required to confirm that peak currents and cycle times remain within breaker specifications.
Guessing here often leads to one of two failures: nuisance tripping during peak demand or insufficient protection during abnormal conditions.
Nonlinear Loads and Harmonics
Modern electrical systems increasingly include nonlinear loads.
Variable frequency drives, LED lighting, and switched-mode power supplies introduce harmonic currents that increase effective RMS current beyond what simple load calculations suggest. These harmonics contribute to additional heating in both conductors and breakers, even when measured current appears acceptable.
When nonlinear loads dominate a circuit, breaker sizing and trip characteristics must account for harmonic content, not just nominal current draw.
Correctly matching breaker characteristics to load behavior prevents two common failures:
Both outcomes result from selection errors, not defective devices. Understanding how a load behaves over time is what turns breaker selection from guesswork into controlled risk management.
Voltage level and pole configuration determine how a breaker interrupts faults and how completely it isolates a circuit.
Source: Single / Double / Three-Pole Isolation Diagram
Choosing the wrong pole configuration can leave conductors energized, damage equipment through phase loss, or create unsafe maintenance conditions—even when the breaker’s amp rating appears correct.
Single-Pole Breakers
Single-pole breakers disconnect one energized conductor and are typically used on 120V branch circuits.
They are common for lighting and receptacle loads where the neutral remains grounded and continuous operation on a single phase does not present a hazard. When a fault occurs, opening one hot conductor is sufficient to interrupt current flow and protect downstream wiring.
However, single-pole protection is only appropriate when code permits it and when partial disconnection does not create operational or safety risks.
Double-Pole Breakers
Double-pole breakers disconnect both energized conductors simultaneously, providing full circuit isolation.
They are used on 240V single-phase systems and some 208V applications where equipment must shut down completely during a fault or maintenance event. This configuration prevents one conductor from remaining energized while the other opens, which could otherwise expose equipment or personnel to unexpected voltage.
For loads that cannot tolerate single-phase operation, double-pole protection is not optional—it is a requirement.
Three-Pole Breakers
Three-pole breakers are designed for three-phase systems, including 208V, 480V, and higher industrial voltages.
Three-phase motors, large HVAC units, and industrial machinery require all phases to disconnect at the same time. Opening only one or two phases can cause severe overheating, torque imbalance, and mechanical stress. In these systems, pole coordination is just as important as current rating.
Three-pole breakers ensure consistent isolation and predictable fault clearing across all phases.
Voltage Rating and Insulation Limits
Breaker voltage ratings define the maximum system voltage the device can safely interrupt and withstand.
Using a breaker rated below system voltage is a code violation and a safety hazard. The device may fail to interrupt a fault or suffer internal insulation breakdown. Conversely, installing a higher-voltage-rated breaker in a lower-voltage system is electrically acceptable but often unnecessary and more expensive.
Voltage rating also affects internal clearances and arc extinction capability. These characteristics are engineered for specific voltage ranges and should be matched precisely to the system.
Fault Types and Phase Configuration
Fault behavior depends on how the system is configured.
Line-to-line faults, line-to-ground faults, and three-phase faults produce different current magnitudes and interruption challenges. Grounded versus ungrounded systems further change fault paths and available fault current.
Coordination studies must account for all expected fault types. Pole configuration and voltage rating determine whether the breaker can interrupt each fault scenario safely and consistently.
Selecting pole count is not about convenience or panel layout. It is about ensuring complete isolation, protecting equipment from phase loss, and controlling fault behavior.
A breaker that opens the correct number of conductors at the correct voltage level is doing far more than switching power—it is enforcing system safety by design.
The right circuit breaker type depends on fault current levels, coordination requirements, and code mandates—not on feature count or price tier.
Before selecting a breaker, you should be clear on what the system needs to protect against: overloads, short circuits, ground faults, arc faults, or a combination of these. Different breaker types exist because no single device handles every risk equally well.
Load Type vs Breaker Selection Considerations
| Breaker Type | Typical Applications | Key Advantage | When Not Appropriate |
| Thermal-Magnetic | Branch circuits, light industrial | Simple, reliable | High coordination needs |
| Electronic-Trip | Industrial distribution | Adjustable coordination | Small/simple systems |
| GFCI / RCCB | Wet / shock-risk areas | Personnel protection | Equipment-only circuits |
| AFCI | Residential dwelling areas | Fire risk reduction | Industrial environments |
Thermal-magnetic breakers are appropriate when fault currents are moderate and coordination requirements are simple. Thermal-magnetic breakers handle most branch circuits and light industrial applications without issue.
These breakers use two independent mechanisms: a thermal element for sustained overloads and a magnetic element for high-magnitude short-circuit faults. This combination covers the majority of branch circuits and light industrial applications reliably and cost-effectively.
In practice, thermal-magnetic breakers work well when:
Most thermal-magnetic and electronic-trip designs fall under molded case circuit breakers, which are widely used in commercial and industrial distribution systems due to their compact form factor and standardized ratings.
Electronic-trip breakers are selected when precision and coordination matter more than simplicity.
Instead of fixed thermal and magnetic elements, these breakers use sensors and electronic trip units to monitor current and initiate trips. This allows adjustable long-time, short-time, instantaneous, and ground-fault settings that cannot be achieved with thermal-magnetic designs.
Electronic-trip breakers are typically required when:
They are common in industrial distribution systems, data centers, hospitals, and large commercial facilities where an unnecessary upstream trip can shut down critical operations. Diagnostics and event logging are often secondary benefits—not the primary reason they are specified.
AFCI and GFCI devices are code-driven safety requirements, not optional performance upgrades.
GFCI protection is required in locations where ground-fault shock hazards are likely, such as wet areas, outdoor circuits, kitchens, bathrooms, and similar environments. These devices detect imbalance between conductors and interrupt the circuit before dangerous current can pass through a person.
AFCI protection targets fire risk caused by arcing in damaged or deteriorated wiring. Electrical codes require AFCI protection in designated residential and dwelling-unit areas, regardless of load type or breaker rating.
When codes mandate AFCI or GFCI protection, selection is binary: the required device must be installed. Cost, convenience, or personal preference do not override compliance.
Breaker types are not interchangeable feature sets. They exist to manage different risks in different environments.
Using an electronic-trip breaker where a thermal-magnetic device is sufficient adds cost without improving safety. Using a thermal-magnetic breaker where coordination precision is required creates unnecessary outages. Ignoring AFCI or GFCI requirements creates inspection failures and liability exposure.
Correct breaker type selection aligns protection capability with real system risk—not with marketing labels or perceived product hierarchy.
Electrical codes and standards define minimum safety requirements, not design preferences.
When selecting a circuit breaker, codes determine what is allowed, required, or prohibited. They do not tell you how to optimize a system, but they set the boundaries within which every technical decision must fit.
Codes Establish Non-Negotiable Requirements
In the United States, the National Electrical Code (NEC) governs how breakers must be applied to protect conductors, equipment, and people. Internationally, IEC standards serve a similar role.
These standards specify requirements for:
If a breaker does not meet the applicable code requirement, it cannot be used—regardless of performance claims or cost advantages.
Local Interpretation Matters More Than the Book Alone
Codes are enforced by the Authority Having Jurisdiction (AHJ), not by the document itself.
Local inspectors interpret and apply code requirements based on regional amendments, inspection practices, and historical precedent. Two installations that look identical on paper may receive different approvals in different jurisdictions.
For this reason, breaker selection should consider not only the written code, but also how it is enforced locally. Early alignment with the AHJ reduces redesign risk, inspection delays, and last-minute equipment changes.
Compliance Does Not Mean Oversizing
Meeting code requirements does not justify over-engineering a circuit.
Installing a breaker with a rating far above the conductor ampacity or load demand does not improve safety. In fact, oversizing eliminates effective overcurrent protection and exposes downstream wiring to thermal damage.
Codes require breakers to protect conductors—not to provide a margin for uncertainty. Correct selection balances compliance with accurate load and conductor analysis.
Documentation Is Part of Code Compliance
In commercial and industrial projects, compliance extends beyond installation.
Breaker specifications, interrupting ratings, coordination studies, and test reports are often required as part of the inspection and turnover process. For infrastructure and mission-critical systems, this documentation may need to remain accessible for decades.
Selecting breakers without considering documentation availability creates long-term maintenance and audit problems, even if the installation passes initial inspection.
Standards Influence Breaker Compatibility and Certification
Breaker listings and certifications determine where a device may be legally installed.
Using a breaker that is not listed for a specific panel or application violates code and voids equipment listings. Physical fit does not imply electrical or regulatory compatibility.
For OEM equipment and export systems, certification requirements must align with the target market. A breaker acceptable under one standard may be unusable under another, forcing redesigns late in the development cycle.
Codes ensure baseline safety, but they do not replace engineering judgment. They tell you what must be protected and how protection must be verified, not how to design the most reliable or cost-effective system. Treating code compliance as the finish line—rather than the starting boundary—often leads to systems that pass inspection but perform poorly in real operation.
Verifying details before procurement prevents installation delays, compatibility conflicts, and long-term maintenance issues. Even a correctly selected breaker can become a failure point if these checks are skipped.
Approved Manufacturers and Project Standards
Many facilities, owners, and industries standardize on specific breaker brands. Installing non-approved equipment often leads to rejected submittals, change orders, and procurement delays. These requirements should be verified before pricing and quoting, not after equipment has arrived on site.
Panelboard and Switchgear Compatibility
Breakers are not universally interchangeable. Always match breakers exactly to the panelboard or switchgear manufacturer’s specified and listed devices. Physical fit alone does not guarantee electrical or regulatory compatibility.
Short-Circuit Interrupting Rating (AIC / kAIC)
The breaker’s interrupting rating must meet or exceed the available fault current at its installation location. If available fault current is 22kA, a 10kA-rated breaker is unacceptable—even if the load current appears low. In a high-fault condition, an underrated breaker may fail to interrupt safely, resulting in severe equipment damage and safety hazards.
Documentation and Submittals
Code compliance extends beyond the installed hardware. Most commercial and industrial projects require submittal documentation, including breaker data sheets, interrupting ratings, and installation instructions. Some projects also require Operations and Maintenance (O&M) manuals and coordination study references.
This documentation should be collected and reviewed during procurement. Waiting until installation or inspection often leads to delays and rework.
Long-Term Availability and Lifecycle Support
Specifying discontinued or soon-to-be-phased-out models creates long-term maintenance problems when replacements are needed years later. Current-production breakers from manufacturers with stable product lines reduce future risk. Reviewing manufacturer lifecycle notices and product transition plans helps avoid forced retrofits down the line.
Breaker selection should be reviewed by a licensed electrician or engineer whenever system behavior cannot be confidently verified through standard calculations and manufacturer data.
This typically applies in situations involving high available fault current, multi-level distribution systems, or installations where selective coordination is required. Complex motor loads, large transformers, and systems with multiple power sources also warrant professional review.
A licensed professional is especially important when breaker selection affects code interpretation, coordination studies, or liability exposure. In these cases, the review is not about choosing a different product—it is about confirming that assumptions, calculations, and protection boundaries are correct.
For simple like-for-like replacements in existing panels, professional review may not be necessary. But when system conditions change, load profiles shift, or fault current increases, independent verification helps prevent failures that are expensive to correct after installation.
Circuit breaker selection is risk management through structured decision-making, not product comparison. Most failures occur not because breakers are defective, but because they are mismatched to the system they protect. Correct selection aligns load behavior, fault conditions, and installation constraints from the start.
When uncertainty remains around fault current, coordination, or compliance, a focused review by a qualified professional can prevent costly corrections later.
Ampere rating defines how much current a breaker can carry continuously under normal operation. Interrupting rating (AIC or kAIC) defines the maximum fault current the breaker can safely interrupt without failure. Both ratings must be correct. A breaker with the proper ampere rating but insufficient interrupting capacity is unsafe in high-fault-current locations.
Available fault current is determined by utility data or by calculation performed by a licensed engineer. It depends on transformer size and impedance, conductor length, and upstream protective devices. This value cannot be estimated reliably in the field. When fault current is unknown or assumed, breaker interrupting ratings are often undersized, creating serious safety and compliance risks.
Panels are UL-listed as complete assemblies tested with specific breakers. Even if a breaker physically fits, using a non-listed brand voids the panel listing and violates code. This is a common field mistake because physical compatibility is easy to see, while listing and certification requirements are not. Always use breakers explicitly approved for the panel model.
