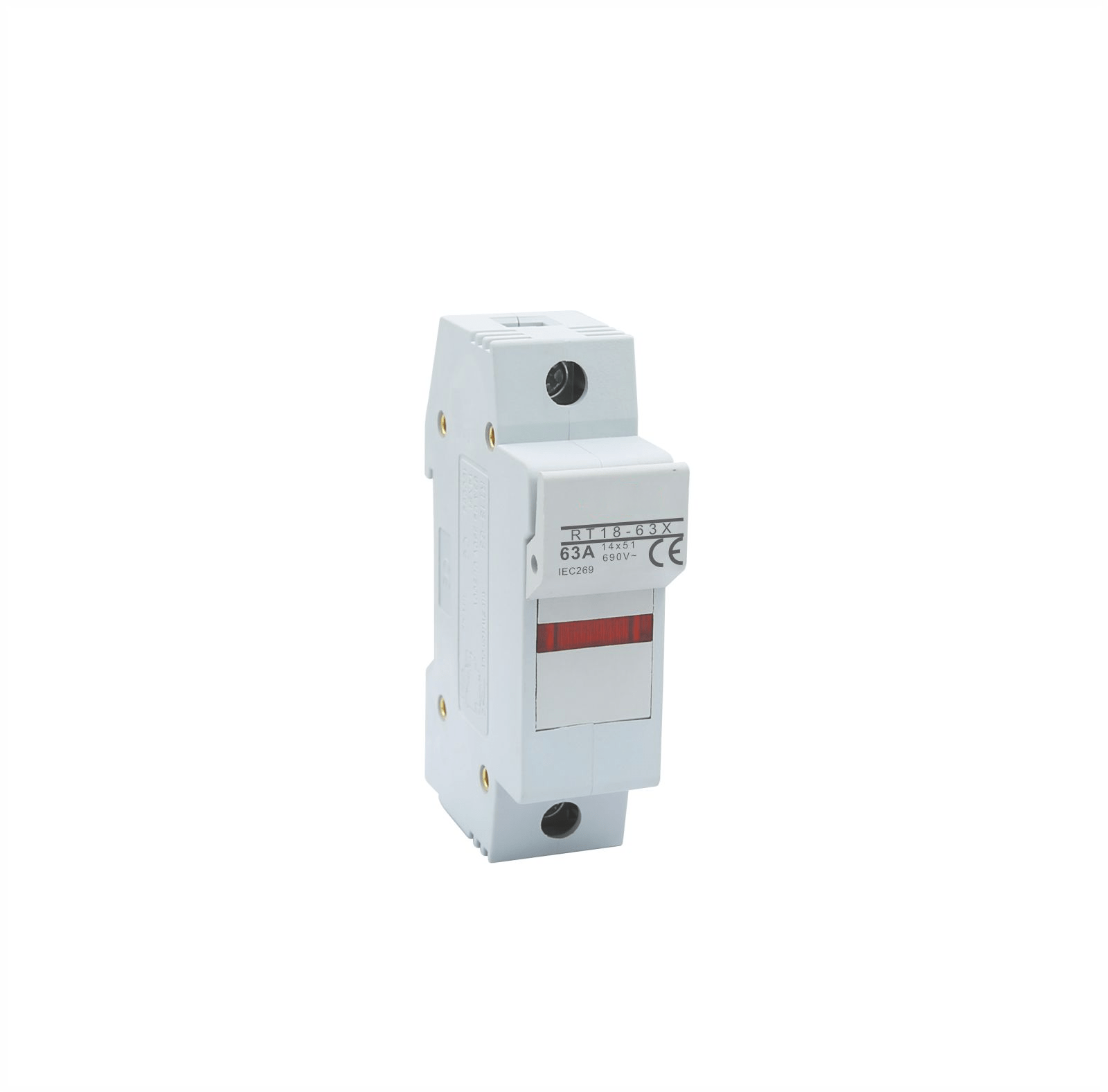

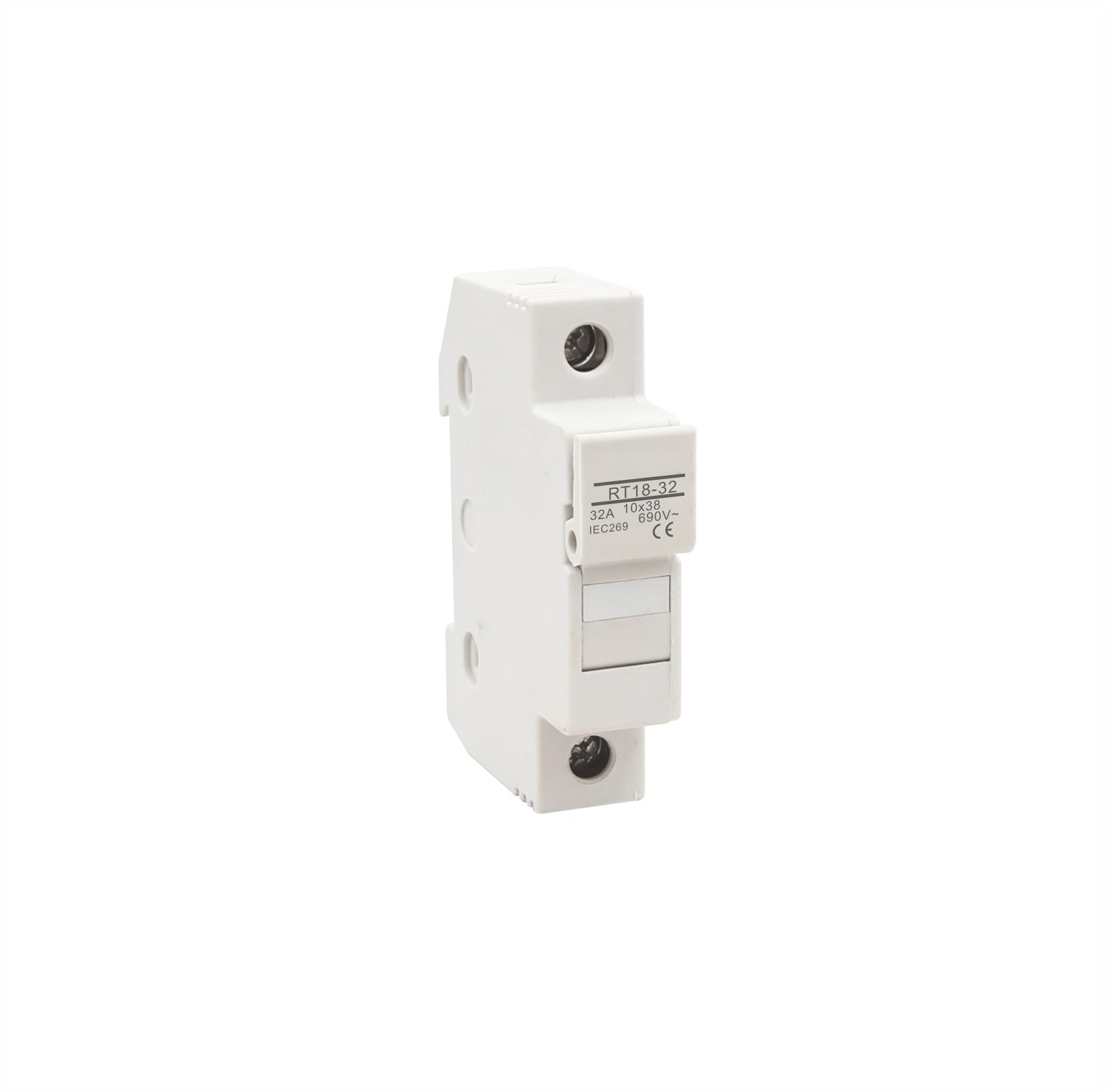

OMF1 Series Rail Mount AC Fuse Holder without fuse core

The OMF1 series fuse holders are designed to securely house fuses and provide reliable protection for electrical circuits. Suitable for various fuse sizes and configurations, these fuse holders support rated voltages up to 690V and rated currents up to 63A. The OMF1 series is available in multiple models, including 1P, 2P, and 3P configurations, making them versatile for different applications. With robust construction and precise dimensions, these fuse holders ensure safe and efficient operation in a variety of electrical systems.

Share to:

Application

The OMF1 series fuse holder are designed to securely house fuses and provide reliable protection for electrical circuits. Suitable for various fuse sizes and configurations, these fuse holders support rated voltages up to 690V and rated currents up to 63A. The OMF1 series is available in multiple models, including 1P, 2P, and 3P configurations, making them versatile for different applications. With robust construction and precise dimensions, these fuse holders ensure safe and efficient operation in a variety of electrical systems.

Features

  • Assorted Fuse Compatibility:
    • OMF1-32 models: Compatible with Ø10×38 fuses
    • OMF1-63 models: Compatible with Ø14×51 fuses
  • Wide Voltage and Current Range: Suitable for rated voltages up to 690V and rated currents up to 63A.
  • Multiple Configurations: Available in 1P, 2P, and 3P configurations to meet different circuit protection needs.
  • Robust Construction: Durable design ensures long-lasting performance and reliable protection.
  • Precise Dimensions: Designed for easy installation and secure fit in electrical systems.

Advantages

  • Secure Protection: Provides reliable housing for fuses, ensuring secure and effective circuit protection.
  • Versatile Application: Suitable for various electrical systems with multiple configurations and fuse compatibility options.
  • High Safety Standards: Designed to meet rigorous safety standards, ensuring dependable operation.
  • Easy Installation: Precise dimensions and robust construction facilitate quick and secure installation.
  • Durable Performance: Built to withstand demanding electrical environments, ensuring long-term reliability.
The OMF1 series fuse holders are the ideal solution for secure and reliable circuit protection. With their versatile configurations, robust design, and precise dimensions, they ensure safe and efficient operation in a variety of electrical systems.

Parameter

ModelAssortedFuseRated Voltage(V)Rated Current (A)Dimensions
ABCDE
OMF1-32 1PØ10×38690328078356018
OMF1-32 2P328078356036
OMF1-32 3P328078356054
OMF1-63 1PØ14×51639896356826
OMF1-63 2P639896356852
OMF1-63 3P639896356878
OMF1-32X 1PØ10×38328078356018
OMF1-32X 2P328078356036
OMF1-32X 3P328078356054
OMF1-63X 1PØ14×51639896356826
OMF1-63X 2P639896356852
OMF1-63X 3P639896356878

Dimensions
