Application

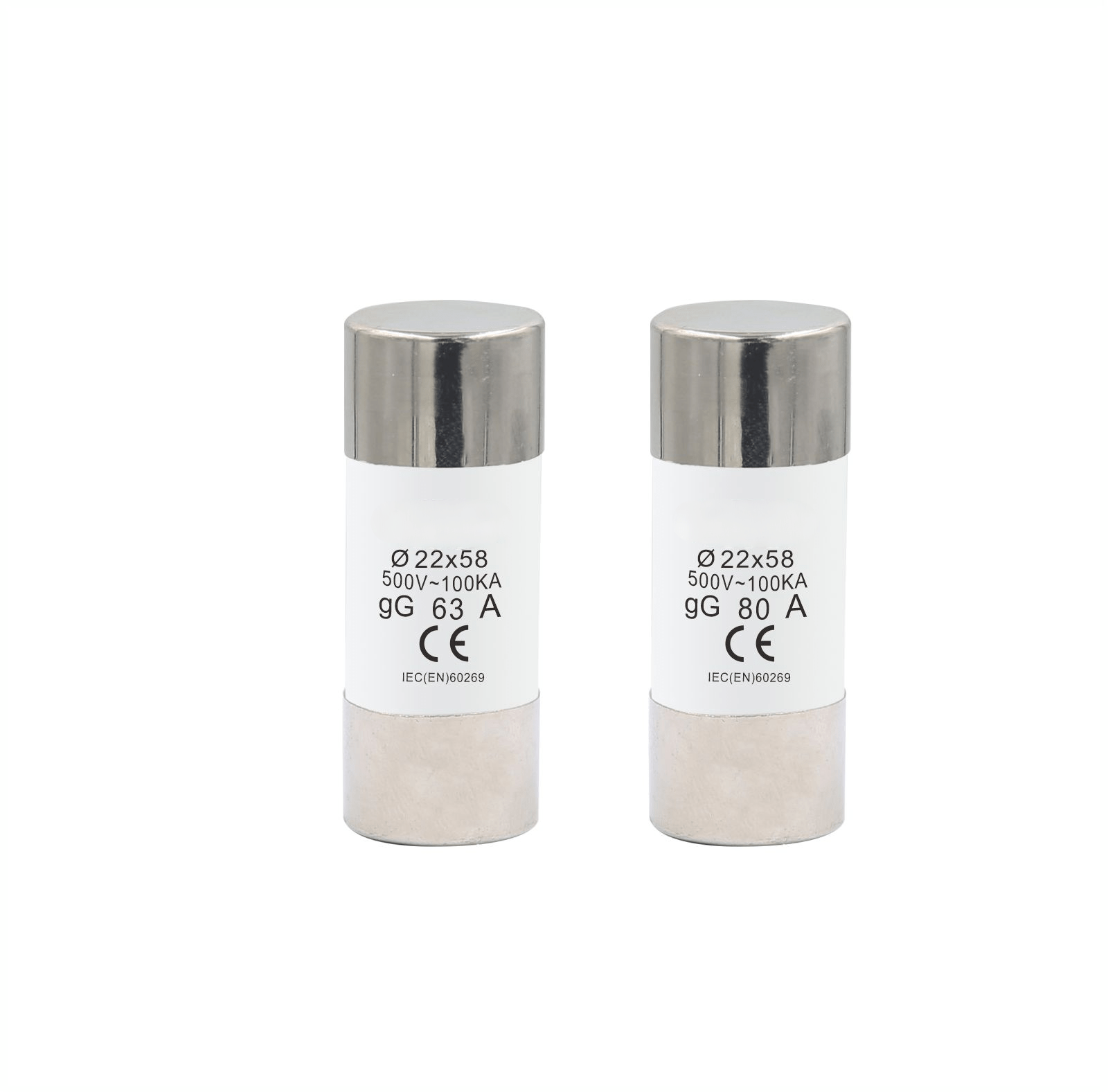

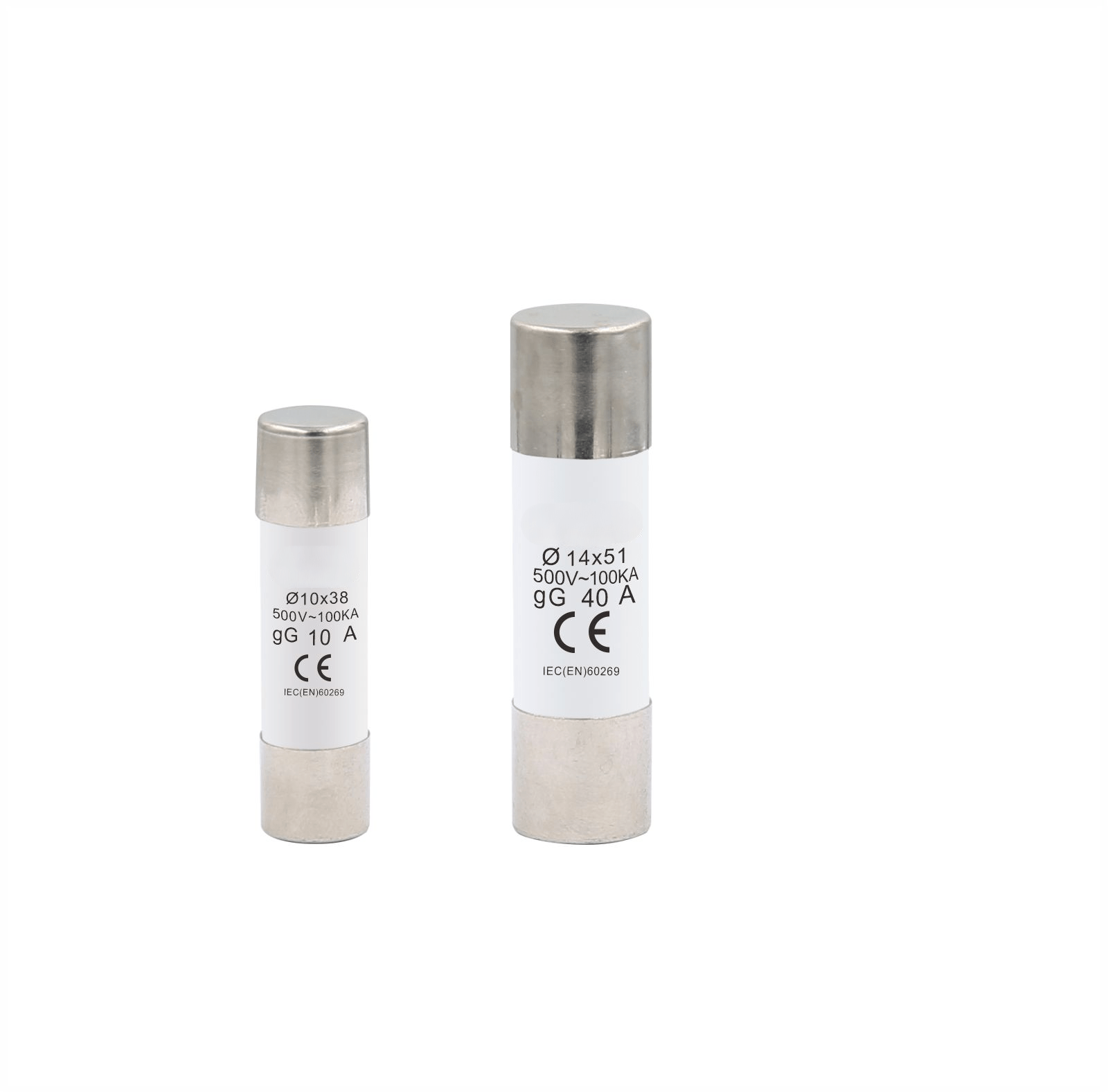

The OMFL fuse links with cylindrical contact caps are designed to protect electrical distributing installations with a rated voltage of 660V AC and a rated current of up to 125A. These fuse links provide robust protection against damage due to overload and short circuit conditions. Additionally, OMFL fuse links with strikers are available to protect motors against single-phase operation when used in fuse isolators, ensuring comprehensive protection for your electrical systems.
Features
- High Voltage and Current Capacity: Suitable for electrical installations with a rated voltage of 660V AC and a rated current up to 125A.
- Overload and Short Circuit Protection: Provides reliable protection against damage caused by overload and short circuit conditions.
- Cylindrical Contact Caps: Ensures secure and reliable electrical connections.
- Striker Equipped Fuse Links: Available with strikers for protecting motors against single-phase operation when fitted in fuse isolators.
- Versatile Application: Ideal for use in a variety of electrical distributing installations, offering comprehensive protection.
Advantages
- Reliable Circuit Protection: Safeguards electrical distributing installations from overload and short circuit damage, ensuring system reliability.
- Motor Protection: Fuse links with strikers offer additional protection for motors, preventing single-phase operation and potential damage.
- Secure Connections: Cylindrical contact caps provide secure and reliable connections, enhancing safety and performance.
- Wide Range of Applications: Suitable for various electrical installations, providing versatile and comprehensive protection solutions.
The OMFL fuse links are the perfect solution for protecting electrical distributing installations. With their high voltage and current capacity, robust protection features, and additional motor protection options, they ensure reliable and safe operation in any electrical system.
Parameter
| Model | Rated Current(A) | Rated Voltage (V) | Dimension | |
| gL/gG aM | aR | ØDxL | ||
| RO14 | RS14 | 1,2,4,6,10,16,20 | 380/500 | Ø8.5×31.5 |
| RO15 | RS15 | 1,24,6,10,16,20,25,32 | Ø10x 38 | |
| RO16 | RS16 | 2.4,6,10,16,20,25,32,40,50,63 | Ø14×51 | |
| RO17 | RS17 | 10,16,20,25,32,40,50,63,80,100,125 | Ø22×58 | |
| RO54 | RS54 | 1,2,4,6,10,16 | 250 | Ø5×20 |
| RO55 | RS55 | Ø5×25 | ||
| RO56 | RS56 | Ø6×20 | ||
| RO57 | RS57 | Ø6x 25 | ||
Dimension
