Product Description
OOHMAGE Type 2+3 AC Surge Protection Device (MYN20 Series) is designed to safeguard your electrical systems from dangerous surges caused by lightning strikes or power disturbances. Engineered with MOV (Metal Oxide Varistors) technology, it offers high-performance surge protection for both residential and industrial electrical systems.
Features:
- Type 2+3 Surge Protection: This device combines Type 2 and Type 3 protection, providing dual-layer protection for AC systems, ensuring optimal performance and long-lasting safety.
- Nominal Discharge Current: With a 10kA nominal discharge current (In) and a 20kA maximum discharge current (Imax), it offers reliable protection for electrical circuits.
- Low Residual Voltage: The low residual voltage design minimizes the risk of electrical damage, while the Varistor voltage limiting technology ensures that transient overvoltages are safely suppressed.
- Thermal Disconnection and Pluggable Design: Featuring an internal thermal disconnection device, the surge protector also comes with a pluggable design, ensuring easy maintenance and replacement.
- Visual Fault Indicators: The green/red fault display enables quick status checks, while the remote signal option allows for enhanced monitoring capabilities.
- DIN Rail Mountable: The device is DIN rail mountable (35mm), making it easy to integrate into your electrical panel for both residential and industrial applications.
- Compliance with Global Standards: This device meets IEC 61643-11, EN 61643-11, and GB/T 18802.11 standards and is CE, TUV, UKCA, CB, and RoHS certified, ensuring top-notch safety and performance.
- High-Quality Enclosure: The surge protector is housed in a thermoplastic material, compliant with UL94 V-0 flame retardant standards for enhanced durability and safety in various operating environments.
- Wide Operating Temperature: Operating effectively between -40°C to +85°C, this surge protection device is ideal for diverse environments and weather conditions.
With these advanced features, the OOHMAGE MYN20 Series AC Surge Protection Device ensures unmatched protection for your electrical systems, helping you prevent costly damages caused by power surges, and enhancing the safety and reliability of your electrical infrastructure.
Parameter
Technical Data | ||||
Model | MYN20-275 | MYN20-320 | MYN20-385 | MYN20-440 |
SPD Type | Type 2+3 | |||
Technology | MOV (Metal Oxide Varistors) | |||
Max. continuous operating voltage [Uc] | 275Vac | 320Vac | 385Vac | 440Vac |
Temporary Overvoltage Test Value TOV-5s(Tolerance) [Ut] | 335Vac | 335Vac | 500Vac | 580Vac |
Temporary Overvoltage Test Value TOV-120min(Disconnection) [Ut] | 440Vac | 440Vac | 650Vac | 770Vac |
Nominal discharge curent(8/20us) [ln] | 10kA | |||
Max.discharge current (8/20us) [lmax] | 20KA | |||
Voltage Protection level [Up] | ≤1.2kV | ≤1.3kV | ≤1.5kV | ≤1.6kV |
Short-circuit current rating [Isccr] | 25kA | |||
Response time [tA] | ≤25ns | |||
Thermal Disconnection Device | Insertion | |||
Max. Backup Fuse | 32A gL/gG FUSE | |||
Mechanical Data | ||||
SPD configuration | AC system | |||
Plugable | Available | |||
Mounting | 35mm DIN rail | |||
Enclosure Material | Thermoplastic,conform to UL94 V-0 | |||
0perating Temperature Range | -40°C…-85°C | |||
Protection rating | IP20 | |||
Normal/fault Display | Green / Red | |||
Remote Signal | Optional | |||
Wiring for remote signaling | Max.1.5mm solid/flexible | |||
Max.Voltage / Current for remote signaling | 250V/0.1A;125V/0.2A;75V/0.5A | |||
Standards | IEC/EN 61643-11 | |||
Certificate | TUV,CE,UKCA,CB,IEC,RoHS,REACH,CQC | |||
Packing Data | ||||

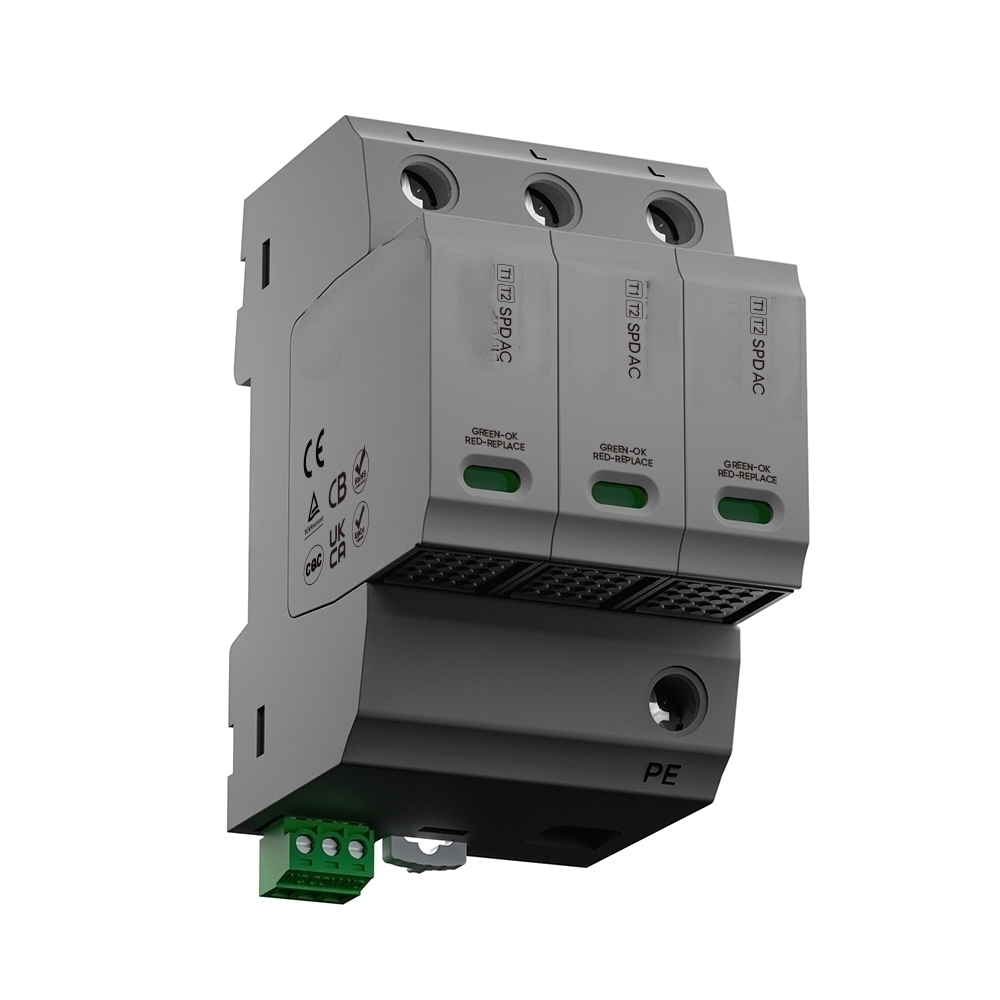

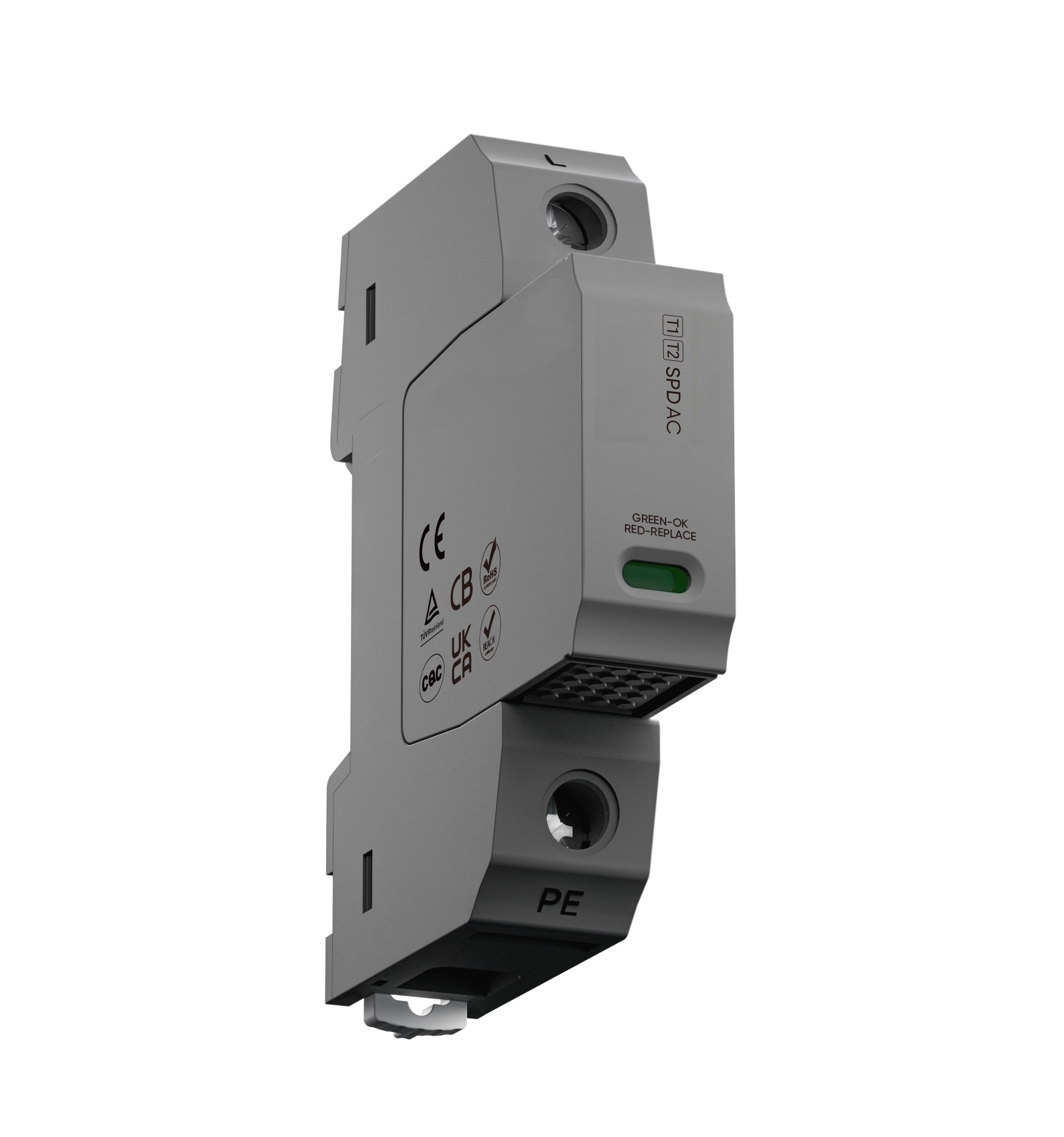

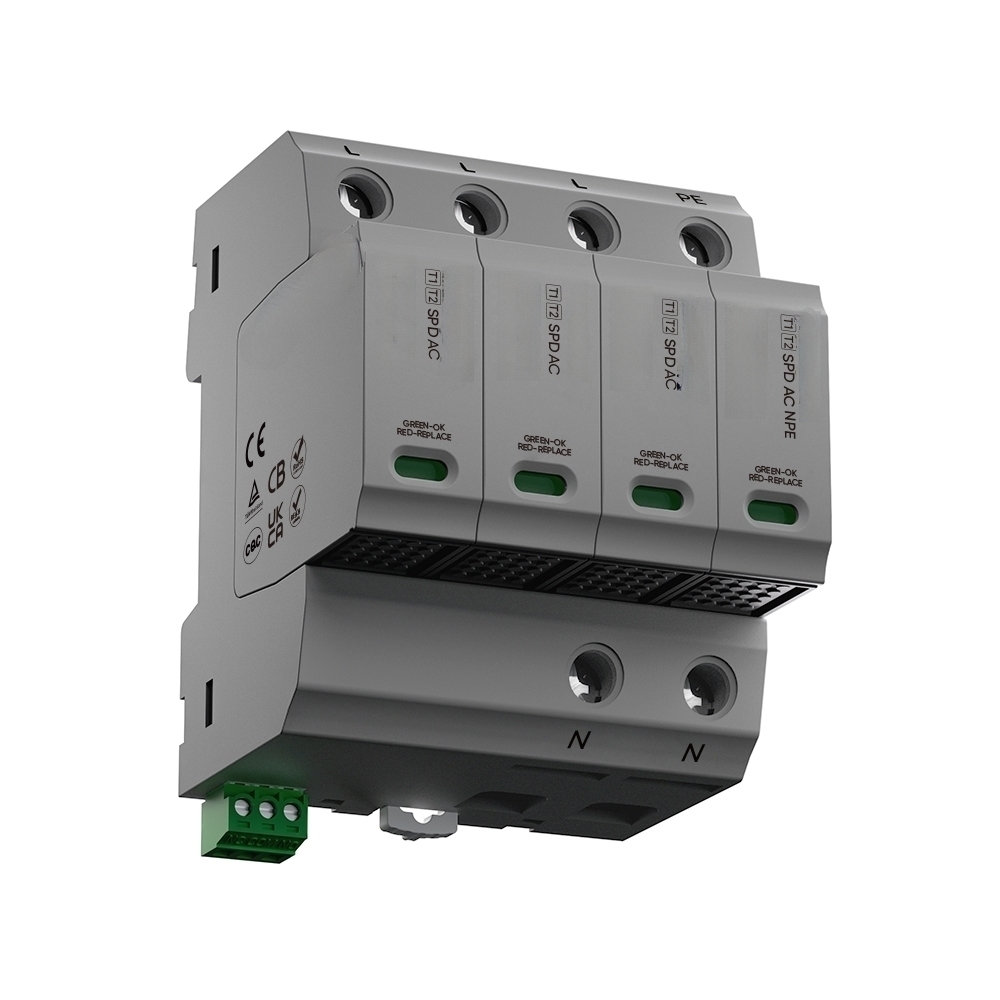

Pole | 1+0 | 2+0/1+1 | 3+0 | 4+0/3+1 |
Weight (1 piece) | 120g | 220g | 320g | 420g |
Package Quantity(PCS/CTN) | 144 | 72 | 48 | 36 |
CTN Size | 46*30.5*15.9cm | |||
