Description
The OMMF series modular contactors are designed to provide efficient and reliable switching solutions for a variety of applications. Suitable for use in AC-1 and AC-3 categories, these contactors are available in multiple configurations, including 2-pole (OMMF 2P), 3-pole (OMMF 3P), and 4-pole (OMMF 4P) models. They offer a range of control voltages (24VAC, 110VAC, 230VAC, 50/60Hz) and are equipped with various contact arrangements to meet different switching needs. With their modular design and robust performance, the OMMF series modular contactors are ideal for controlling and switching electrical loads in residential, commercial, and industrial settings.
Key Features
- Multiple Configurations: Available in 2-pole, 3-pole, and 4-pole models to suit different application requirements.
- Wide Range of Ratings:

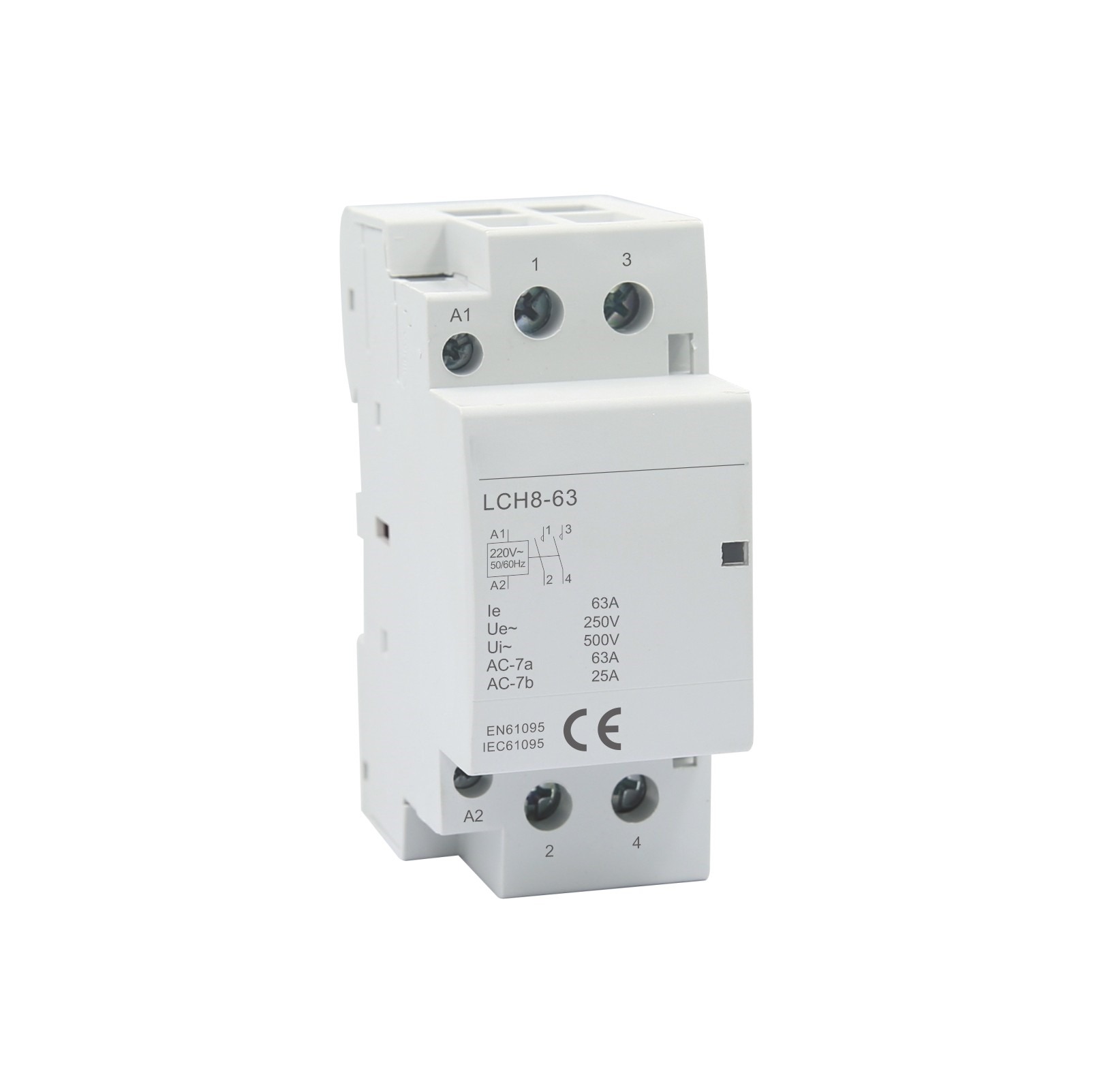

- OMMF 2P: Ratings from 16A to 125A in AC-1 category and 6A to 50A in AC-3 category.
- OMMF 3P: Ratings from 16A to 63A in AC-1 category and 6A to 25A in AC-3 category.

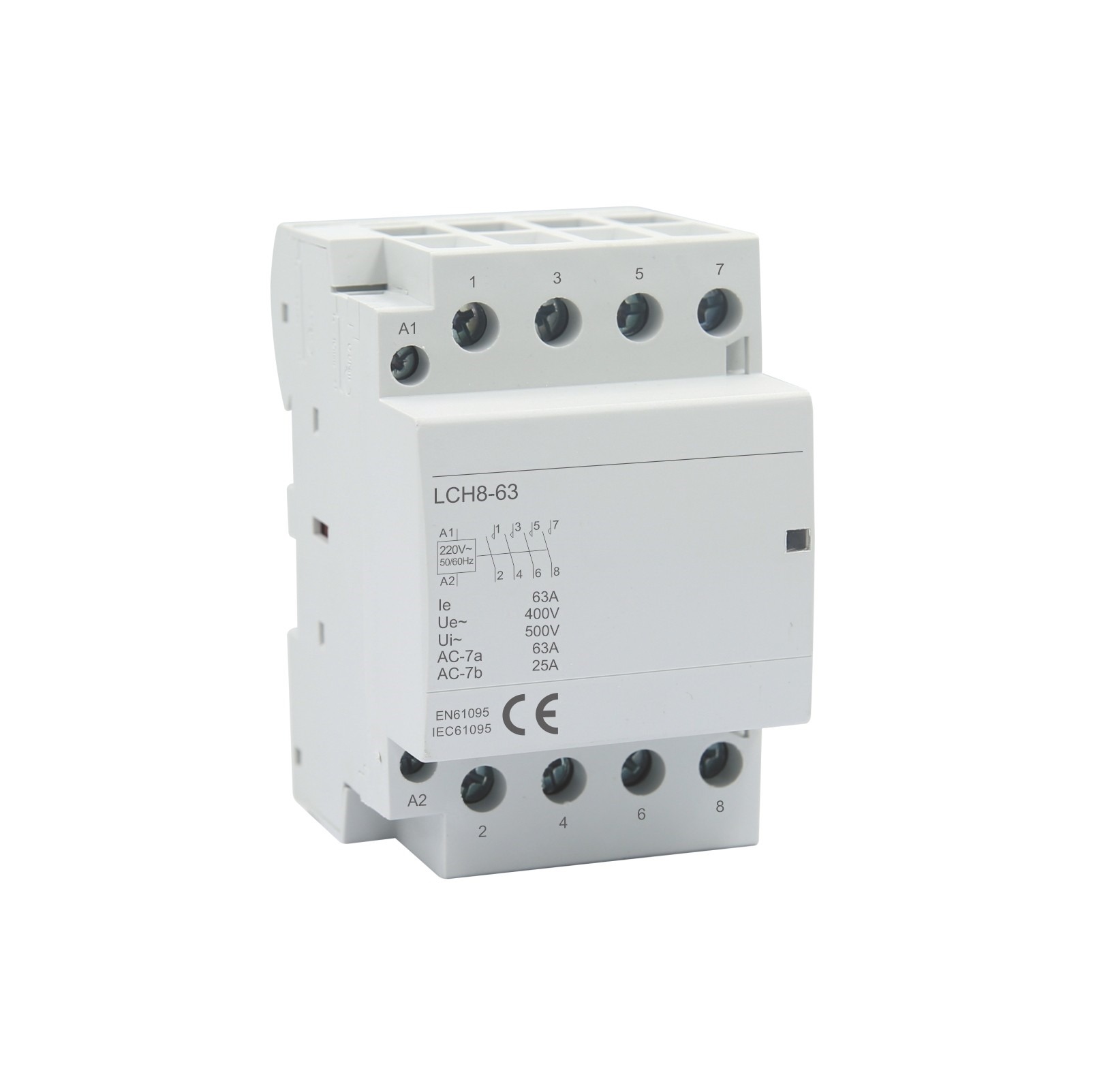

- OMMF 4P: Ratings from 16A to 125A in AC-1 category and 6A to 50A in AC-3 category.
- Control Voltage Options: Operates on 24VAC, 110VAC, or 230VAC, making them versatile for various electrical systems.
- Contact Arrangements: Offers different contact configurations including:
- OMMF 2P: 2N0, 1NO+1NC, 2NC
- OMMF 3P: 3N0, 3NC
- OMMF 4P: 4N0, 4NC, 2N0+2NC, 3NO+1NC
- Compact Design: Width in 9mm modules ranges from 2 to 12, ensuring easy installation in various panel sizes.
Exclusive Advantages
- Versatile Application: Suitable for controlling and switching electrical loads in residential, commercial, and industrial environments.
- Robust Performance: Provides reliable switching with high durability, ensuring long-term operation.
- Flexible Control Options: Multiple control voltage options allow for integration into diverse electrical systems.
- Enhanced Safety: Different contact configurations provide tailored solutions for specific switching requirements, enhancing operational safety.
- Space-Efficient Design: Compact modular design allows for efficient use of panel space, facilitating easy installation and maintenance.
Specification
| Model | Rating(In) | Control Voltage | Contact | Width in 9mm modules | Type | |
| AC-1 | AC-3 | |||||
| OMMF 2P | 16A | 6A | 24VAC 110VAC 230VAC 50/60Hz | 2N0 1NO+1NC 2NC | 2 |  |
| 20A | 7A | |||||
| 25A | 9A | |||||
| 32A | 12A | 4 | ||||
| 40A | 18A | |||||
| 63A | 25A | |||||
| 80A | 32A | 6 | ||||
| 100A | 40A | |||||
| 125A | 50A | |||||
| OMMF 3P | 16A | 6A | 3N0 3NC | 4 |  | |
| 20A | 7A | |||||
| 25A | 9A | |||||
| 32A | 12A | 6 | ||||
| 40A | 18A | |||||
| 63A | 25A | |||||
| OMMF 4P | 16A | 6A | 4N0 4NC 2N0+2NC 3NO+1NC | 4 |  | |
| 20A | 7A | |||||
| 25A | 9A | |||||
| 32A | 12A | 6 | ||||
| 40A | 18A | |||||
| 63A | 25A | |||||
| 80A | 32A | |||||
| 100A | 40A | 12 | ||||
| 125A | 50A | |||||
Dimensions
Specification
| Model | Rating(In) | Control Voltage | Contact | Width in 9mm modules | Type | |
| AC-1 | AC-3 | |||||
| LCH8-M 2P | 16A | 6A | 24VAC 110VAC 230VAC 50/60Hz | 2N0 1NO+1NC 2NC | 2 |  |
| 20A | 7A | |||||
| 25A | 9A | |||||
| 32A | 12A | 4 | ||||
| 40A | 18A | |||||
| 63A | 25A | |||||

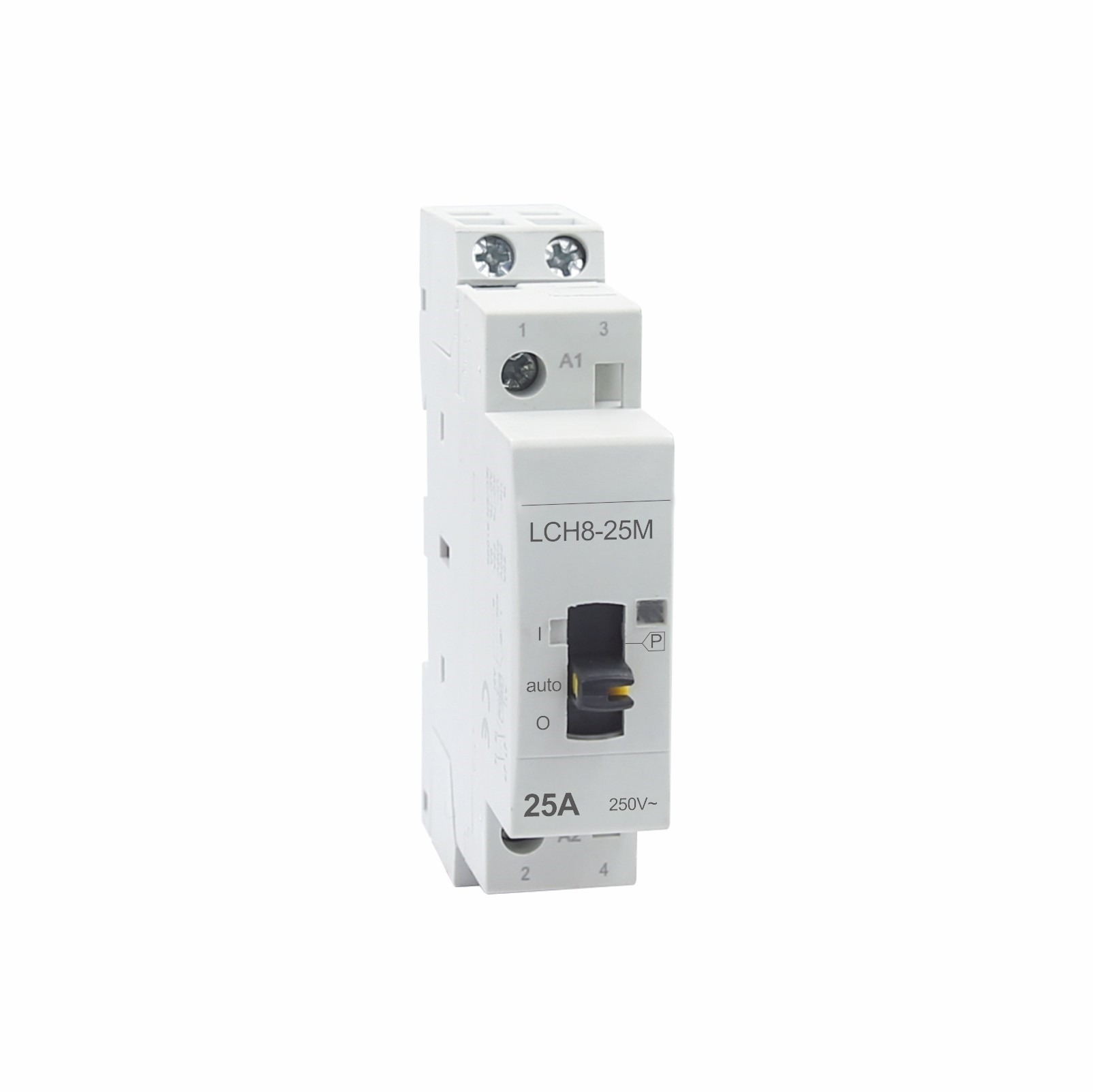

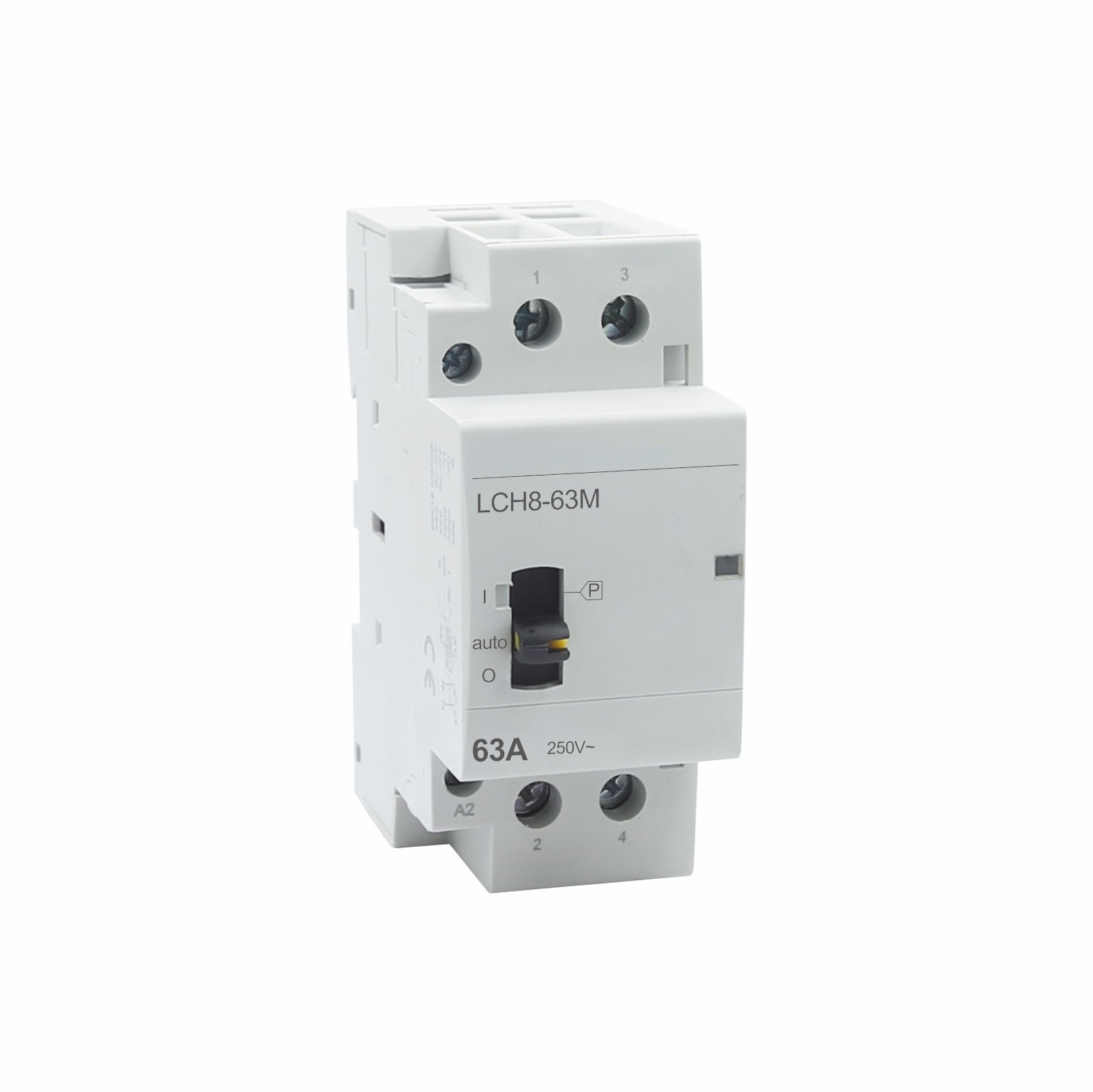

| LCH8-M 3P | 16A | 6A | 3N0 3NC | 4 |  | |
| 20A | 7A | |||||
| 25A | 9A | |||||
| 32A | 12A | 6 | ||||
| 40A | 18A | |||||
| 63A | 25A | |||||

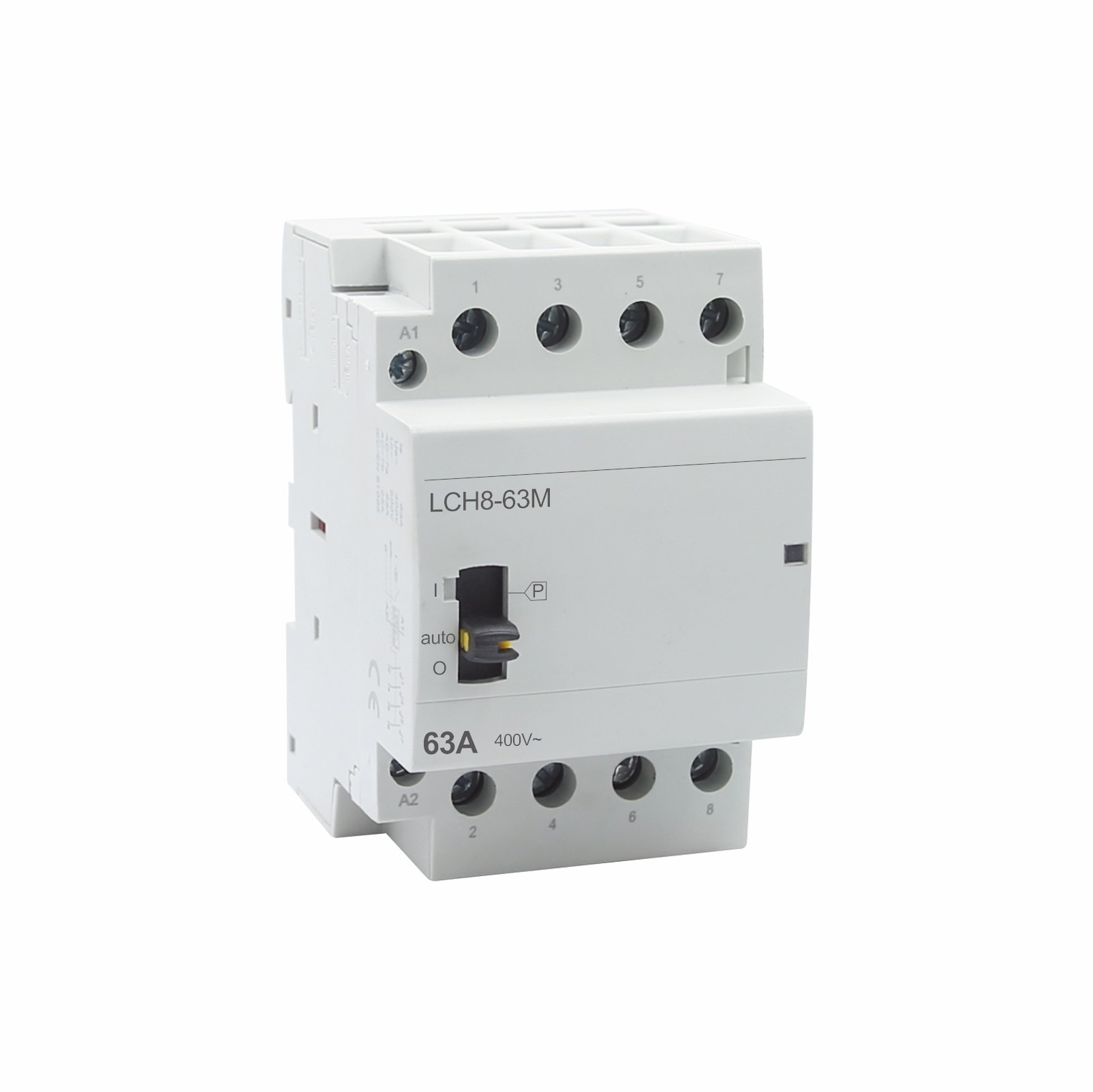

| LCH8-M 4P | 16A | 6A | 4N0 4NC 2N0+2NC 3NO+1NC | 4 |  | |
| 20A | 7A | |||||
| 25A | 9A | |||||
| 32A | 12A | 6 | ||||
| 40A | 18A | |||||
| 63A | 25A | |||||
Dimensions
