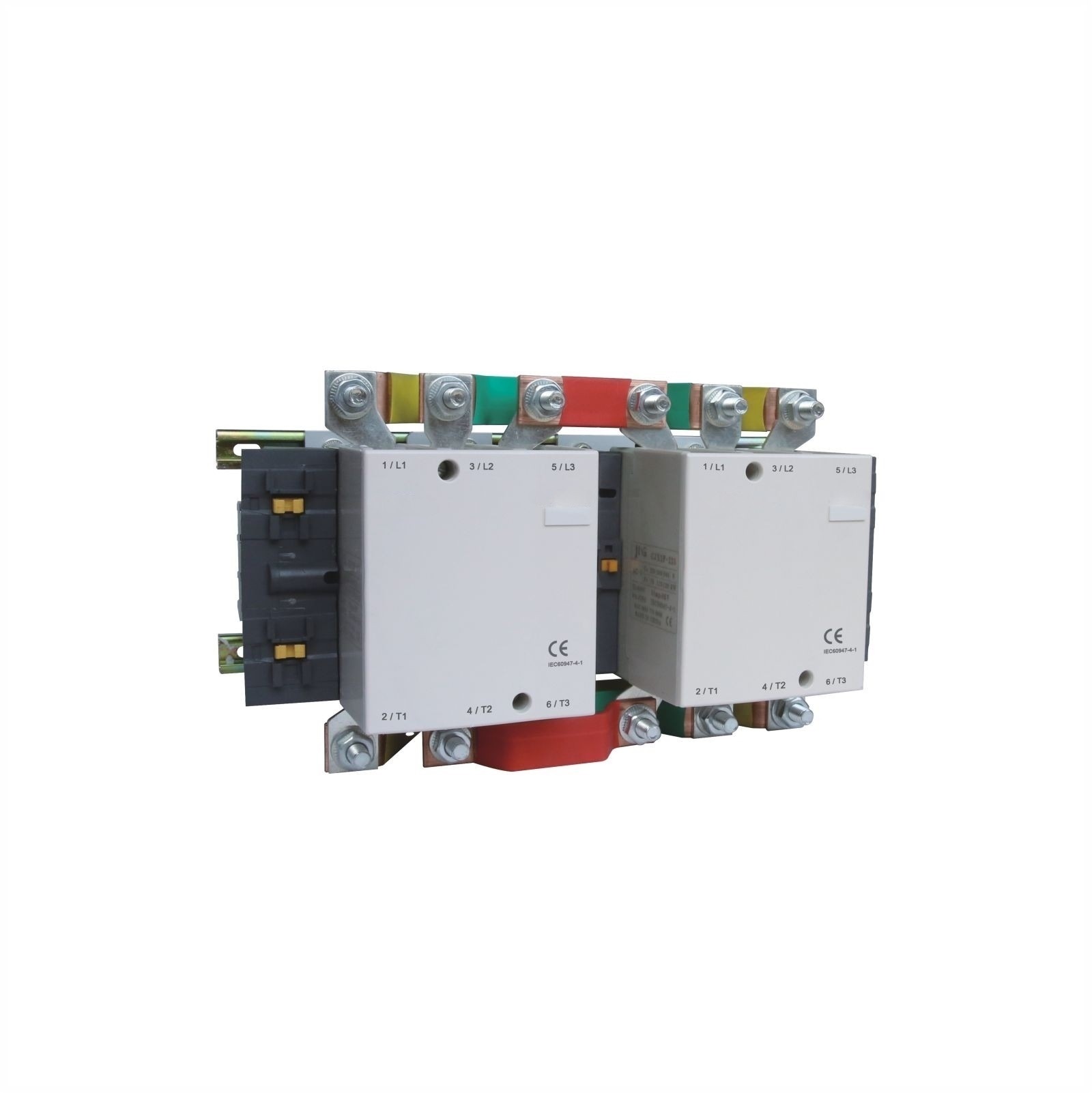

Introduction: Unveiling the OMC2-F225 Mechanical Interlocked AC Contactor
The OMC2-F225 Mechanical Interlocked AC Contactor is an essential component for controlling high-power electrical circuits, particularly in industrial settings. This contactor is designed to ensure safety, reliability, and efficiency. In this guide, we will delve into the features and specifications of the OMC2-F225, along with a comparison with other models in the OMC2-F series.
TOC: Features and Specifications of the OMC2-F225 Mechanical Interlocked AC Contactor
- Overview of OMC2-F225
- Key Features and Specifications
- Comparison with Other Models
- Applications and Benefits
- Conclusion and FAQs
Content: Features and Specifications of the OMC2-F225 Mechanical Interlocked AC Contactor
Overview of OMC2-F225
The OMC2-F225 Mechanical Interlocked AC Contactor is a robust and reliable device designed for heavy-duty applications. It features 3 poles and is rated for 225A under AC-3 conditions. This model is capable of controlling power up to 110KW at 380V.
Key Features and Specifications
The OMC2-F225 stands out due to its high performance and durability. Here are the key features:
- Number of Poles: 3P
- Rated Current (AC-3): 225A
- Rated Current (In/A): 500A
- Controlled Power:
- 220V: 315KW
- 380V: 110KW
- Mechanical Interlock: Ensures safe operation by preventing simultaneous closure of contacts.
Applications and Benefits
The OMC2-F225 is ideal for:
- Industrial Automation: Efficient control of high-power circuits.
- Motor Control: Reliable performance in motor start/stop operations.
- Power Distribution: Safe and effective management of electrical power.
Conclusion: Ensuring Optimal Performance with OMC2-F225
The OMC2-F225 Mechanical Interlocked AC Contactor offers exceptional performance and reliability for high-power applications. Its robust design and mechanical interlock feature make it a superior choice for industrial automation and power distribution systems.
FAQs:
What is the rated current of OMC2-F225?
The OMC2-F225 has a rated current of 225A under AC-3 conditions.
How many poles does the OMC2-F225 have?
The OMC2-F225 features 3 poles.
What are the controlled power ratings for the OMC2-F225?
The OMC2-F225 can control up to 315KW at 220V and 110KW at 380V.
Specifications
| Model | Number ofPoles | Rated CurrentAC-3(A) | Rated CurrentIn/A | Controlled power(KW) | |
| 220V | 380V | ||||
| OMC2-F115 | 3P | 115 | 250 | 200 | 55 |
| OMC2-F1154 | 4P | 115 | 250 | 200 | 55 |
| OMC2-F150 | 3P | 150 | 355 | 250 | 75 |
| OMC2-F1504 | 4P | 150 | 355 | 250 | 75 |
| OMC2-F185 | 3P | 185 | 425 | 275 | 90 |
| OMC2-F1854 | 4P | 185 | 425 | 275 | 90 |
| OMC2-F225 | 3P | 225 | 500 | 315 | 110 |
| OMC2-F2254 | 4P | 225 | 500 | 315 | 110 |
| OMC2-F265 | 3P | 265 | 630 | 350 | 132 |
| OMC2-F2654 | 4P | 265 | 630 | 350 | 132 |
| OMC2-F330 | 3P | 330 | 800 | 400 | 160 |
| OMC2-F3304 | 4P | 330 | 800 | 400 | 160 |
| OMC2-F400 | 3P | 400 | 800 | 500 | 200 |
| OMC2-F4004 | 4P | 400 | 800 | 500 | 200 |
| OMC2-F500 | 3P | 500 | 1000 | 700 | 250 |
| OMC2-F5004 | 4P | 500 | 1000 | 700 | 250 |
| OMC2-F630 | 3P | 630 | 1250 | 1000 | 335 |
| OMC2-F6304 | 4P | 630 | 1250 | 1000 | 335 |
| OMC2-F800 | 3P | 800 | 1250 | 1000 | 400 |
