Introduction

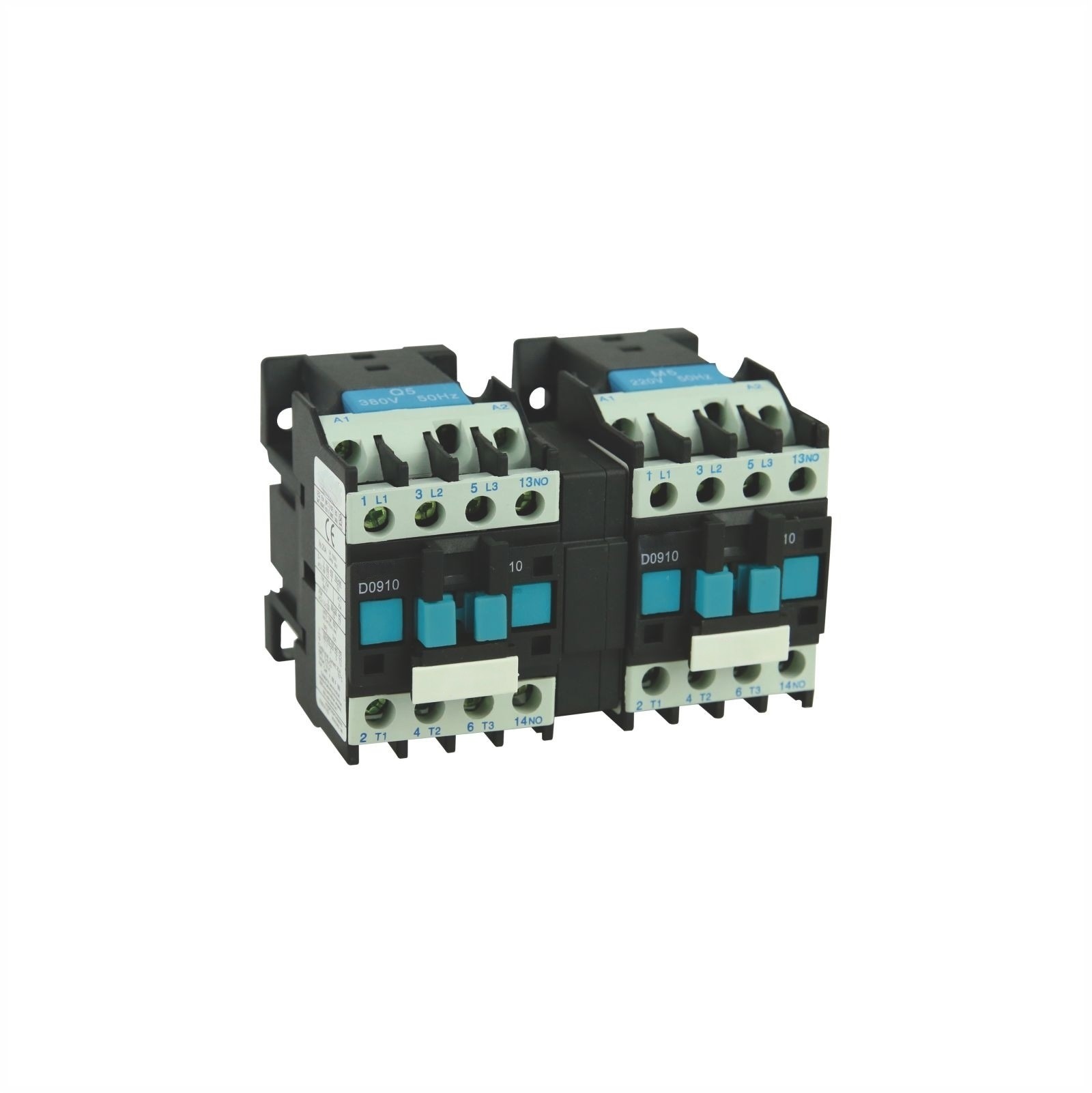

The OMC2-D Mechanical Interlocked AC Contactor series is designed for reliable and efficient control of electrical circuits. These contactors are ideal for various industrial applications where performance and safety are crucial. With a range of models catering to different power ratings, this series offers solutions for diverse operational needs.
Overview
The OMC2-D Mechanical Interlocked AC Contactor series ensures high performance and reliability in controlling electrical circuits. The contactors are designed to handle various voltage levels and power requirements, making them suitable for a wide range of industrial applications.
Features
- High Rated Current: The series ranges from 9A to 620A, accommodating different operational needs.
- Controlled Power: Suitable for controlling power across various voltage levels such as 220V, 380V, 415V, 440V, and 660V.
- Mechanical Interlock: Ensures safe and efficient operation by preventing simultaneous closing of contactors.
- Versatile Applications: Ideal for use in motor control, lighting, and heating circuits.
Applications
The OMC2-D Mechanical Interlocked AC Contactor series is widely used in:
- Motor Control: Ensuring efficient operation and protection of motors.
- Lighting: Managing lighting circuits in industrial and commercial settings.
- Heating: Controlling heating elements in various applications.
Specifications
| Model | Rated currentAC-3(A) | Controlled power(KW) | ||||
| 220V | 380V | 415V | 440V | 660V | ||
| OMC2-D09 | 9 | 2.2 | 4 | 4 | 4 | 5.5 |
| OMC2-D12 | 12 | 5.5 | 5.5 | 5.5 | 5.5 | 7.5 |
| OMC2-D18 | 18 | 7.5 | 7.5 | 9 | 9 | 10 |
| OMC2-D25 | 25 | 5.5 | 11 | 11 | 11 | 15 |
| OMC2-D32 | 32 | 7.5 | 15 | 15 | 15 | 18.5 |
| OMC2-D40 | 40 | 18.5 | 18.5 | 22 | 22 | 30 |
| OMC2-D50 | 50 | 15 | 22 | 25 | 30 | 33 |
| OMC2-D65 | 65 | 18.5 | 30 | 37 | 37 | 37 |
| OMC2-D80 | 80 | 22 | 37 | 45 | 45 | 45 |
| OMC2-D95 | 95 | 22 | 45 | 45 | 45 | 41 |
| OMC2-D115 | 115 | 30 | 55 | 59 | 59 | 80 |
| OMC2-D150 | 150 | 40 | 75 | 80 | 80 | 100 |
| OMC2-D170 | 170 | 55 | 90 | 100 | 100 | 110 |
| OMC2-D205 | 205 | 63 | 110 | 110 | 110 | 129 |
| OMC2-D245 | 245 | 75 | 132 | 132 | 132 | 160 |
| OMC2-D300 | 300 | 100 | 160 | 200 | 200 | 220 |
| OMC2-D410 | 410 | 110 | 220 | 250 | 250 | 280 |
| OMC2-D475 | 475 | 147 | 265 | 280 | 280 | 355 |
| OMC2-D620 | 620 | 200 | 335 | 400 | 400 | 450 |
Conclusion
The OMC2-D Mechanical Interlocked AC Contactor series offers a reliable and safe solution for controlling electrical circuits in various industrial applications. With a wide range of models and features, it meets diverse operational requirements efficiently.
FAQs:
What Is The Rated Current Range Of The OMC2-D Contactors?
The rated current range of the OMC2-D contactors spans from 9A to 620A, accommodating various operational needs.
What Are The Typical Applications Of The OMC2-D AC Contactors?
The OMC2-D AC contactors are typically used in motor control, lighting, and heating circuits in industrial settings.
How Does The Mechanical Interlock Feature Enhance Safety?
The mechanical interlock feature prevents the simultaneous closing of contactors, ensuring safe and efficient operation.
