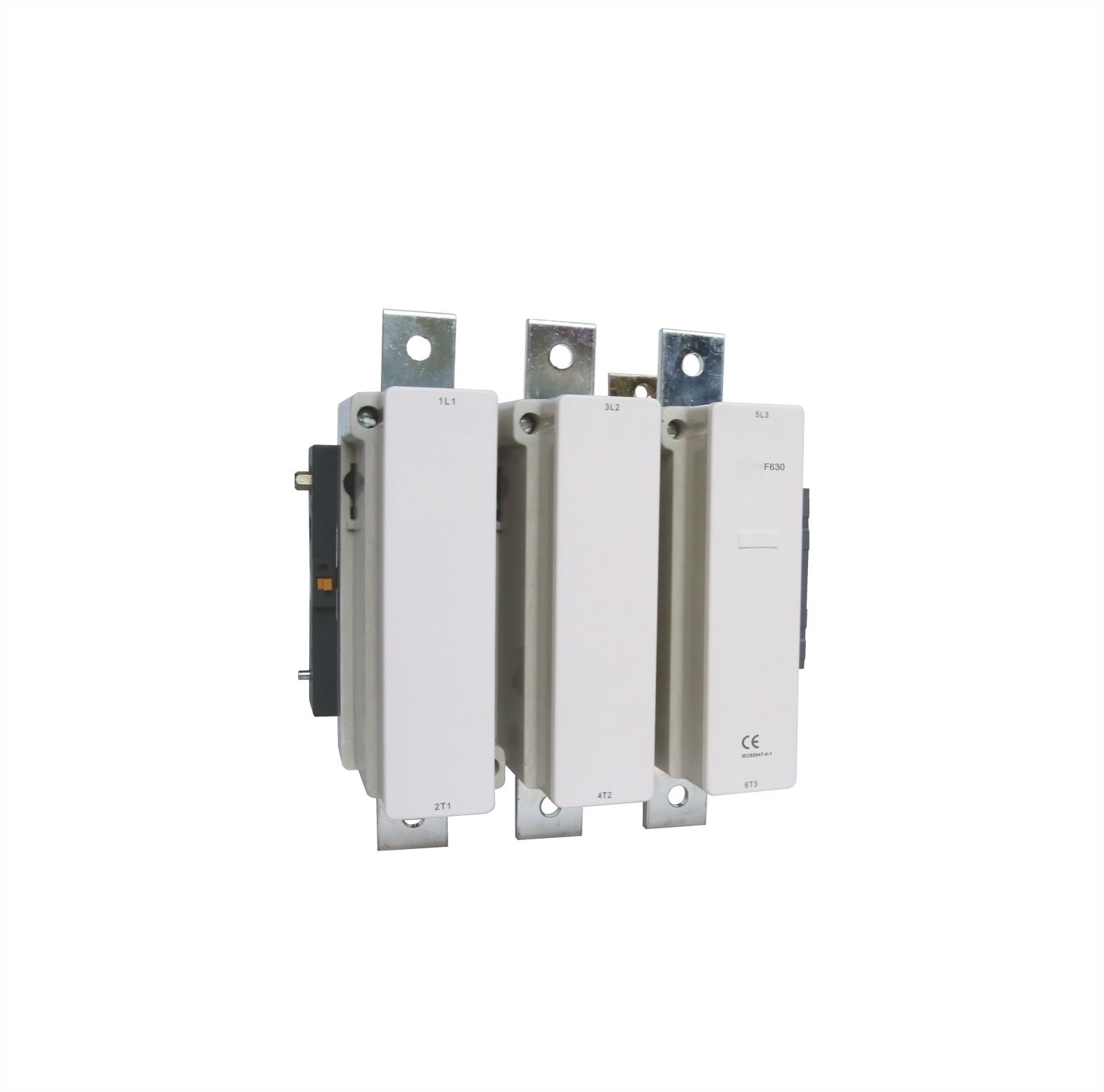

Application
The OMC1-F series AC Contactor is designed for use in circuits with a rated voltage up to 1000V AC at 50Hz or 60Hz, and a rated current ranging from 115A to 800A. This series is ideal for long-distance circuit breaking and frequently starting or controlling motors. It is also suitable for the control of distribution circuits with a rated current from 200A to 1600A, making it a versatile choice for various industrial applications.
Overview
The OMC1-F series AC Contactor offers robust performance and reliability for controlling high-voltage circuits and motors. This series is engineered to handle demanding industrial environments, ensuring efficient operation and safety.
Features
- High Rated Voltage and Current: Suitable for circuits up to 1000V AC and rated current from 115A to 800A.
- Versatile Application: Ideal for long-distance breaking, motor control, and distribution circuits with rated current from 200A to 1600A.
- Robust Design: Engineered for high performance in demanding industrial environments.
- Compliance: Meets international standards for electrical safety and performance.
Specification
| Model | OMC1-F400 | OMC1-F500 | OMC1-F630 | OMC1-F780 | OMC1-F800 | ||||
| Rated operation | AC-3 | 400 | 500 | 630 | 780 | 800 | |||
| current(A) | AC-1 | 500 | 700 | 1000 | 1600 | 1000 | |||
| Standard powerratings of3-phase motorsAC-3(KW) | 220/230V | 110 | 147 | 200 | 220 | 220 | |||
| 380/400V | 200 | 250 | 335 | 400 | 400 | ||||
| 415V | 200 | 280 | 375 | 425 | 420 | ||||
| 440V | 250 | 295 | 400 | 425 | 420 | ||||
| 500V | 257 | 355 | 400 | 450 | 430 | ||||
| 660/690V | 280 | 335 | 450 | 475 | 470 | ||||
| 1000V | 185 | 335 | 450 | 450 | 450 | ||||
Both 3 poles and 4 poles are available.
Applications
The OMC1-F series AC Contactor is widely used in:
- Motor Control: Ensuring efficient operation and protection of motors.
- Distribution Circuits: Managing high-current distribution circuits in industrial settings.
- Long-Distance Breaking: Suitable for applications requiring long-distance circuit breaking.
Conclusion
The OMC1-F series AC Contactor offers a reliable and versatile solution for controlling high-voltage circuits and motors in various industrial applications. With robust design and compliance with international standards, it meets diverse operational requirements efficiently.
FAQs:
What Is The Rated Voltage And Current Range Of The OMC1-F Contactors?
The rated voltage range is up to 1000V AC, and the rated current range goes from 115A to 800A, accommodating various operational needs.
What Are The Typical Applications Of The OMC1-F AC Contactors?
The OMC1-F AC contactors are typically used in motor control, distribution circuits, and long-distance breaking in industrial settings.
How Does The OMC1-F Series Enhance Safety And Performance?
The OMC1-F series is engineered for high performance in demanding environments and meets international standards for electrical safety and performance.
