Description

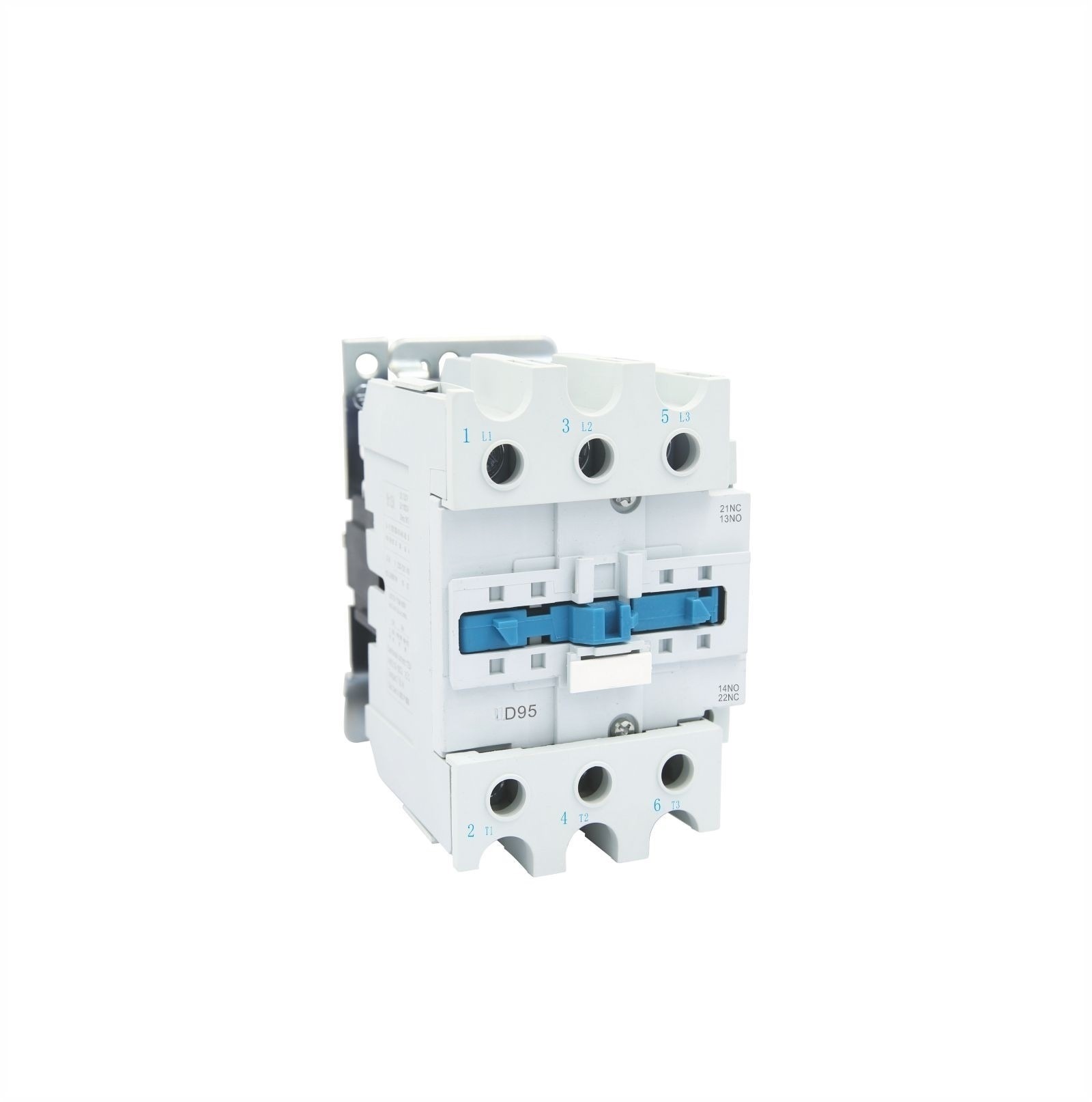

The OMC-D95 AC Contactor is designed for optimal performance in circuits with various voltage levels up to 600V AC. Suitable for both 50Hz and 60Hz applications, this contactor is perfect for making, breaking, and frequently starting or controlling AC motors. This versatile contactor ensures high reliability and efficiency in industrial settings.
Overview
The OMC-D95 AC Contactor offers robust performance and reliability for controlling AC motors and other electrical circuits. This series is engineered to handle demanding industrial environments, ensuring efficient operation and safety.
Features
- High Rated Voltage: Suitable for circuits with various voltage levels up to 600V AC, including 24V, 42V, 48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 440V, and 500V.
- Frequency Compatibility: Designed for both 50Hz and 60Hz applications, providing flexibility in different industrial environments.
- Robust Design: Engineered for high performance and durability in demanding industrial settings.
Standard Control Circuit Voltages
| Volts | 24 | 42 | 48 | 110 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | 600 |
| 50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
| 60Hz | B6 | D6 | E6 | F6 | M6 | U6 | Q6 | 一 | R6 | ||||
| 50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | 一 | 一 |
Dimension
For TSC1-D09~95 contactors:
| Model | A | B | C | D | a | b | ø |
| OMC-D09~12 | 47 | 76 | 82 | 113 | 34/35 | 50/60 | 4.5 |
| OMC-D18 | 47 | 76 | 87 | 118 | 34/35 | 50/60 | 4.5 |
| OMC-D25 | 57 | 86 | 95 | 126 | 40 | 48 | 4.5 |
| OMC-D32 | 57 | 86 | 100 | 131 | 40 | 48 | 4.5 |
| OMC-D40~65 | 77 | 129 | 116 | 1.45 | 40 | 100/110 | 6.5 |
| OMC-D80~95 | 87 | 129 | 127 | 175 | 40 | 100/110 | 6.5 |
Applications
The OMC-D95 AC Contactor is widely used in:
- Motor Control: Ensuring efficient operation and protection of motors.
- Lighting: Managing lighting circuits in industrial and commercial settings.
- Heating: Controlling heating elements in various applications.
Conclusion
The OMC-D95 AC Contactor offers a reliable and versatile solution for controlling electrical circuits and motors in various industrial applications. With multiple voltage configurations and compliance with international standards, it meets diverse operational requirements efficiently.
FAQs:
What is the voltage range of the OMC-D95 contactors?
The voltage range includes 24V, 42V, 48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 440V, 500V, and 600V, accommodating various operational needs.
What are the typical applications of the OMC-D95 AC contactors?
The OMC-D95 AC contactors are typically used in motor control, lighting, and heating circuits in industrial settings.
How does the OMC-D95 series enhance safety and performance?
The OMC-D95 series is engineered for high performance in demanding environments and meets international standards for electrical safety and performance.
