Application

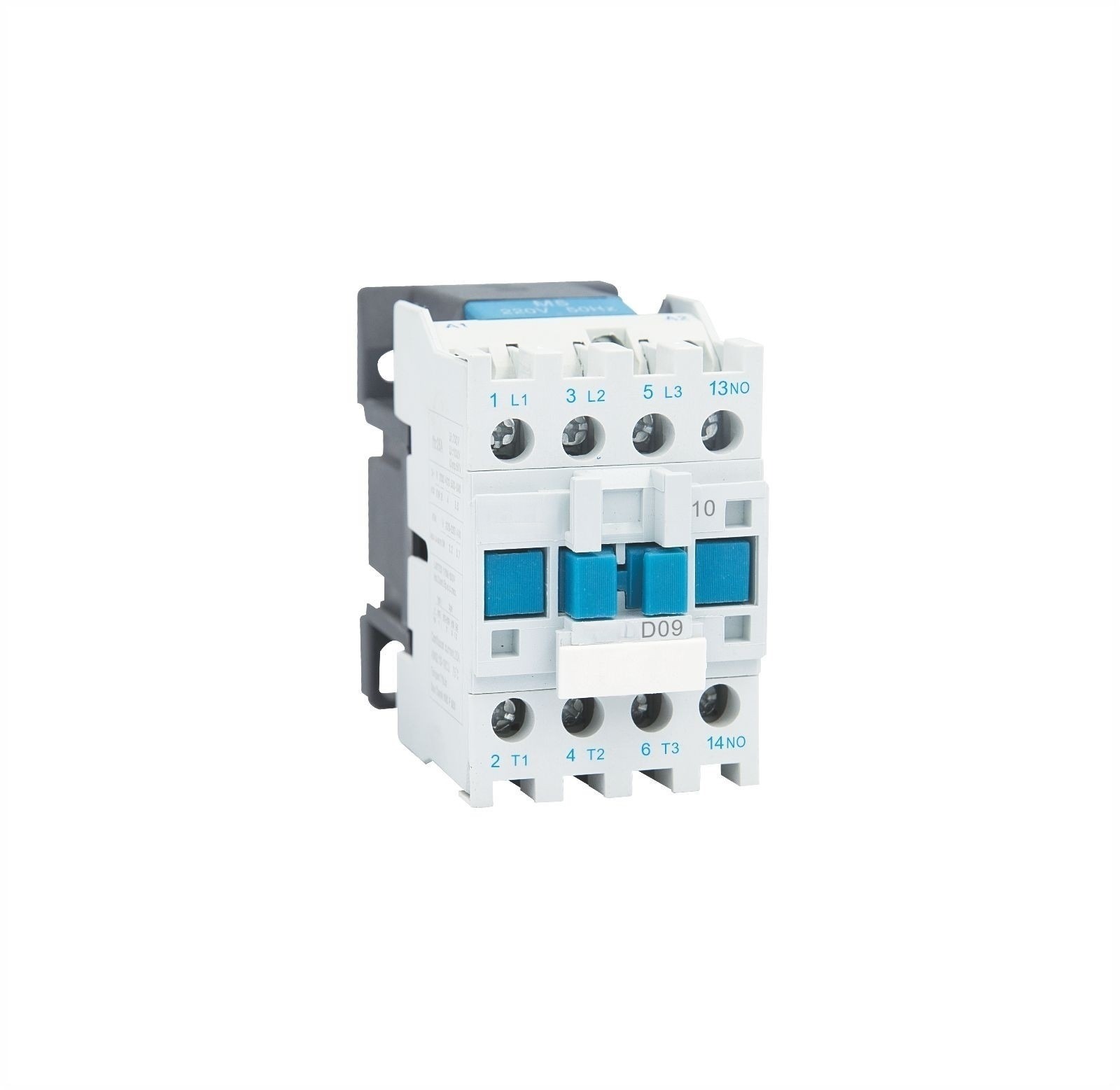

The OMC-D series AC Contactor is specifically designed for use in circuits with a rated voltage up to 660V AC at 50Hz or 60Hz, and a rated current up to 95A. This contactor is ideal for making, breaking, and frequently starting or controlling AC motors. It can be combined with auxiliary contact blocks, delay timers, and machine-interlocking devices to become a delay contactor, mechanical interlocking contactor, or star-delta starter. When paired with a thermal relay, it transforms into an electromagnetic starter. The OMC-D series complies with IEC60947-4, ensuring high reliability and performance.
Overview
Features
Specification
| Model | OMC-D09 | OMC-D12 | OMC-D18 | OMC-D25 | OMC-D32 | |
| Rated working current (A) | AC3 | 9 | 12 | 18 | 25 | 32 |
| AC4 | 3.5 | 5 | 7 | 8.5 | 12 | |
| AC3 capacity of phase 3 squrrel-cage motor AC3(KW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | |
| Electrical life | AC3x 10* | 100 | 100 | 100 | 100 | 80 |
| AC4x 10* | 20 | 20 | 20 | 20 | 20 | |
| Mechanical life x 10* | 1 000 | 1000 | 1000 | 1000 | 800 | |
| Number of the contacts | 3P+NO | |||||
| 3P+NC | ||||||
Applications
Conclusion
FAQs:
What is the rated voltage and current range of the OMC-D contactors?
What are the typical applications of the OMC-D AC contactors?
How does the OMC-D series enhance safety and performance?
