OOHMAGE OMB5-125 AC Miniature Circuit Breaker – Reliable Protection for Electrical Systems
The OOHMAGE OMB5-125 AC Miniature Circuit Breaker (MCB) is a high-performance electrical protection device designed for AC 50/60Hz applications. Engineered to safeguard electrical systems against overloads and short circuits, this AC miniature circuit breaker ensures continuous and reliable operation in residential, commercial, and industrial environments.
With support for single-pole 240V and multi-pole 415V systems, the OOHMAGE OMB5-125 AC miniature circuit breaker is ideal for use in lighting and electric motor distribution systems, offering enhanced safety and durability. Built to meet IEC 60898-1 and IEC 60947-2 standards, it guarantees compliance with international safety regulations.
Features：
1. Wide Voltage Compatibility
- Compatible with single-pole 240V and multi-pole 415V systems.
- Provides flexible protection solutions for different electrical setups.
2. Comprehensive Electrical Protection
- Safeguards electrical systems from overloads and short circuits.
- Ensures uninterrupted operation in various applications.
3. Application Flexibility
- Suitable for lighting and electric motor distribution systems.
- Ideal for infrequent switching of electrical apparatus and circuits.
4. Compliance with International Standards
- Meets IEC 60898-1 and IEC 60947-2 safety regulations.
- Designed for safe and efficient circuit protection.
5. Durable and Reliable Performance
- Built for residential, commercial, and industrial use.
- Provides long-lasting and stable protection for electrical systems.
Product Usage Characteristics
- Versatile Applications: Suitable for lighting, motor systems, and power distribution.
- Enhanced Safety: Protects against overcurrent, overloads, and short circuits.
- Temperature Resilience: Operates in a wide temperature range (-5°C to +40°C).
Applications of OOHMAGE OMB5-125 AC Miniature Circuit Breaker
1. Residential Applications
- Protects home electrical circuits, including lighting and appliances.
- Prevents power failures caused by overloads or short circuits.
2. Commercial Applications
- Ideal for office buildings, retail shops, and commercial complexes.
- Ensures stable power supply and circuit protection.
3. Industrial Applications
- Secures industrial machinery, power distribution panels, and motor systems.
- Provides high-performance electrical protection for heavy-duty equipment.
Specification
| Number of Poles | 1P,2P, 3P, 4P |
| Rated Current | 80A, 100A, 125A |
| Breaking Capacity | 6000A |
| Rated Voltage | 240V/415V |
| Curve Code | C, D |
| Endurance | 20000 |
| Circumstance Temperature | -5°C~+40°C |
| Mechanical Durability | 6000 cycles |
| Electrical Durability | 20000 cycles |
| Protection Degree IP 20 | IP 20 |

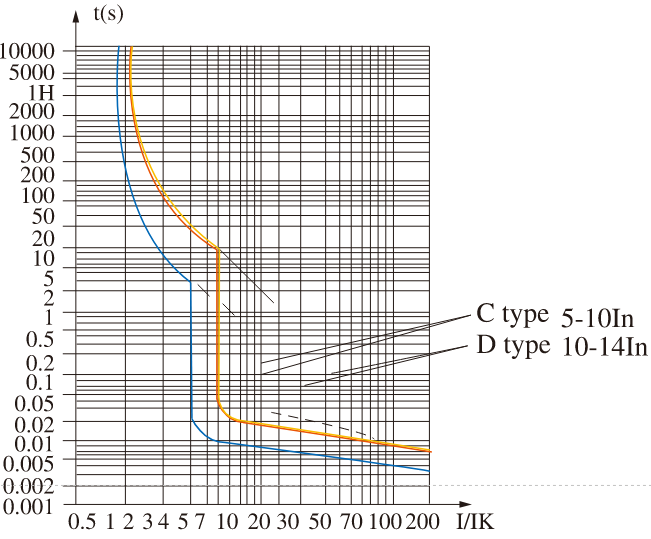

Characteristic

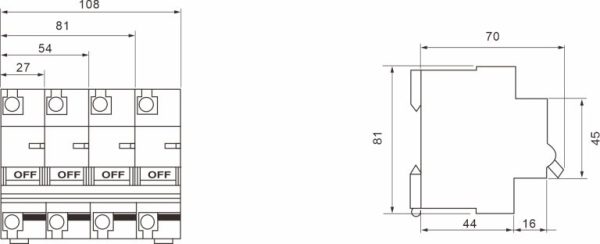

Dimensions
Why Choose the OOHMAGE OMB5-125 AC Miniature Circuit Breaker?
- Reliable and Long-Lasting Protection for all types of AC electrical systems.
- Meets Global Safety Standards (IEC 60898-1, IEC 60947-2).
- Easy Installation with a compact design for DIN rail mounting.
- Optimized for Lighting and Electric Motor Protection.
The OOHMAGE OMB5-125 AC miniature circuit breaker is the perfect choice for safe, efficient, and high-performance electrical protection in residential, commercial, and industrial environments.
