OMB1-63 6kA Miniature Circuit Breaker for Standard Distribution Boards
OMB1-63 is a compact 6kA miniature circuit breaker for standard low-voltage distribution boards, lighting circuits and general circuit protection projects. It is positioned for buyers who need a practical MCB model with stable supply, familiar DIN-rail installation and clear current / pole / curve confirmation before quotation.
For distributors and project buyers, OMB1-63 works well as a regular stock or project-use MCB when the requirement is standard overload and short-circuit protection rather than a specialized high-fault-capacity application. OOHMAGE supports model selection, packaging communication, technical document discussion and one-year warranty support according to agreed order terms.
Why Choose OMB1-63
- Standard 6kA positioning: suitable for common residential, commercial and light industrial distribution applications.
- Compact modular design: practical for DIN-rail distribution boards and space-conscious panel layouts.
- Multiple current options: helps buyers organize mixed orders for different final circuits.
- Project-friendly sourcing: suitable for distributors, panel builders and electrical project suppliers.
Recommended Applications
Choose OMB1-63 when the project needs a reliable 6kA MCB for standard AC low-voltage circuits. If the order requires stronger short-circuit capacity or a higher-spec project model, compare OMB3-63 or OMB4-63 before confirming the final series.
Specification:
| Number of Poles | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
| Rated Current(A) | 1, 2, 3, 4, 5, 6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63 |
| Breaking Capacity | 6000A |
| Rated Voltage | 1P: 240/415V 2P, 3P, 4P: 415V |
| Rated Frequency | 50/60Hz |
| Endurance(V) | ≥4000 |
| Circumstance Temperature | -5ºC~+40ºC |
| Electrical Life (times) | ≥ 6000 |
| Mechanical Life (times) | (O-C) ≥ 20000 |
| Protection Degree | IP20 |
| Upper Wiring Lower Wiring |  1-25mm² |
Characteristic Curve

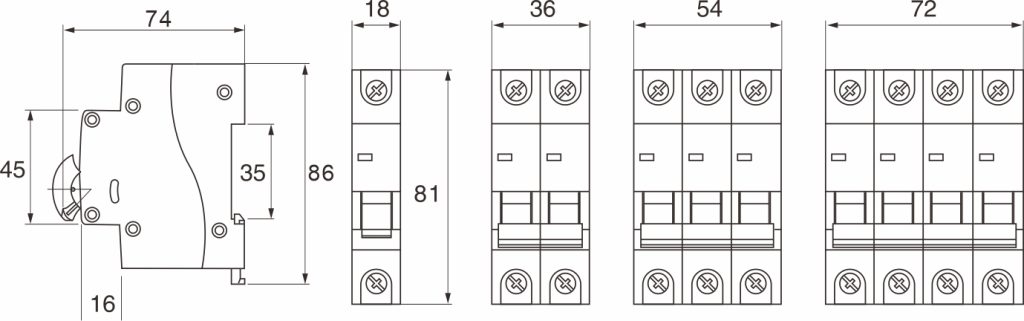

Dimensions
Quotation Checklist
- Rated current and pole configuration
- Curve type and breaking-capacity requirement
- Distribution board or circuit application
- Quantity, packaging and labeling needs
- Destination market and required documents
Common Questions About OMB1-63
Is OMB1-63 suitable for distribution board projects?
Yes. OMB1-63 is suitable for standard low-voltage distribution boards where compact DIN-rail MCB protection is required.
What should I send before quotation?
Please send rated current, poles, curve type, quantity, packaging needs and destination market.
Can OOHMAGE support technical document communication?
Yes. Document communication can be arranged according to the selected model and order requirements.
OMB1-63 6kA MCB Selection and Applications
OMB1-63 6kA MCB is designed for residential, commercial and light-industrial final-circuit protection. Correct selection should be based on rated current, tripping curve, poles, voltage and 6kA breaking capacity. OOHMAGE supplies project quantities with model confirmation, technical documentation support and one-year warranty terms.
- Application fit: Confirm the electrical system and installation environment before final model selection.
- Documentation: CE and ISO-related documentation is available for the promoted product range, subject to exact model confirmation.
- Quality control: Products are checked according to the applicable inspection process before shipment.
Common Questions
Which tripping curve should I choose?
Select the curve according to load characteristics and inrush current; share the application if confirmation is needed.
What information is needed for a quote?
Provide current rating, curve, poles, quantity, application and required certificates or packaging.
Compare the complete OOHMAGE MCB range, or send your ratings, quantity and application to info@oohmage.com for model confirmation and a quotation.
