Application

The OMG1-125 isolating switch is designed to serve as a main switch in distribution boxes for houses or as a switch for individual electric circuits. This versatile isolating switch supports various pole configurations (1P, 2P, 3P, 4P) and is rated for currents ranging from 50A to 125A. It operates at a rated voltage of 240/415V for 1P and 415V for 2P, 3P, and 4P configurations, with a frequency of 50/60Hz. The switch complies with EN/IEC60947-3 standards, ensuring high performance and safety.

Key Features

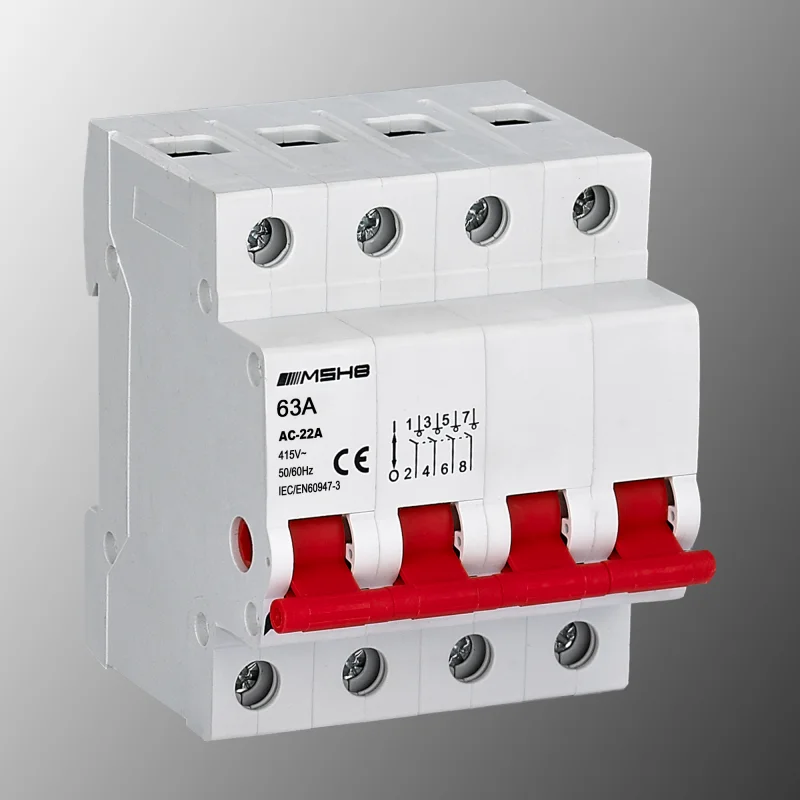

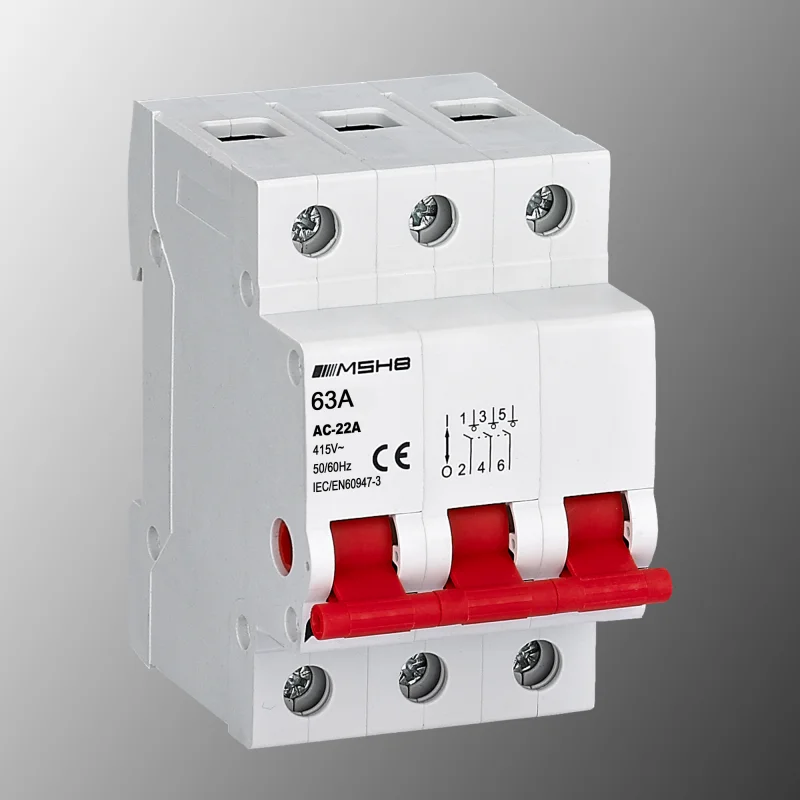

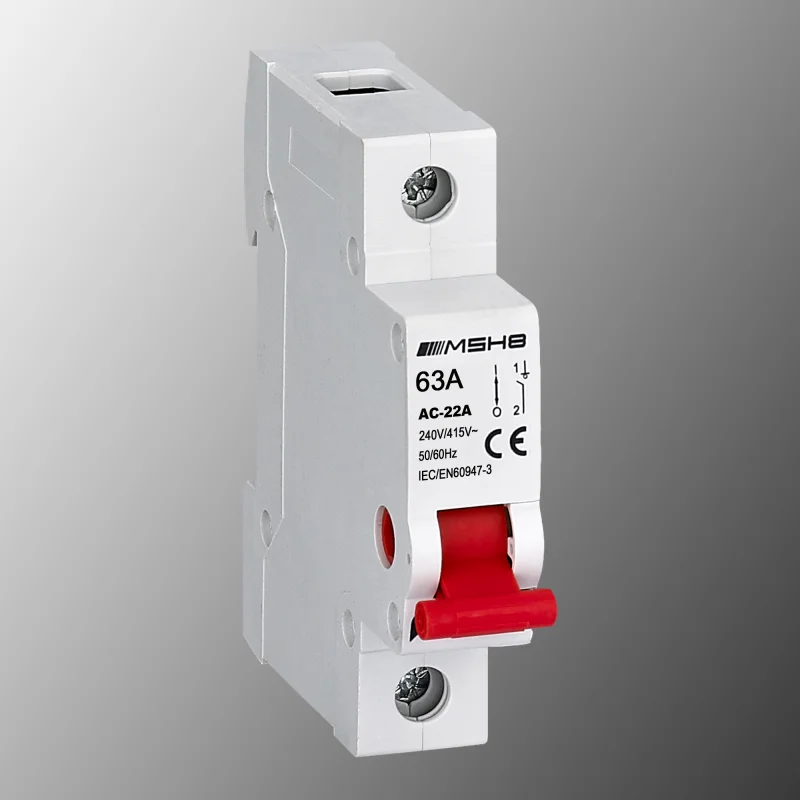

Pole Configurations: Available in 1P, 2P, 3P, and 4P configurations to suit various electrical setups.
Rated Current: Options include 50A, 63A, 80A, 100A, and 125A to meet different power requirements.
Rated Voltage:
- 1P: 240/415V
- 2P, 3P, 4P: 415V
Rated Frequency: Operates at 50/60Hz.
Utilization Category: AC-22A, suitable for switching mixed resistive and inductive loads.
Icw: 12Ie for 0.1s, providing short-term withstand current capability.
Rated Short-Circuit Making Capacity Icn: 20Ie for 0.1s.
Rated Making & Breaking Capacity: 3Ie, 1.05Ue, COSΦ=0.65.
Rated Insulation Voltage Ui: 690V.
Rated Impulse Withstand Voltage Uimp: 4000V.

Exclusive Advantages

Versatile Application: Suitable for use as a main switch in distribution boxes or for individual electric circuits, providing flexible application.
Comprehensive Protection: High short-circuit making capacity and impulse withstand voltage ensure robust protection.
Long Life Span: High electrical and mechanical life, ensuring durability and reliability.
Easy Installation: Mounted on a 35mm DIN rail with 18mm width per pole, facilitating quick and easy installation.
Wide Environmental Tolerance: Operates efficiently in a wide range of temperatures and altitudes, ensuring reliable performance in various conditions.
High Safety Standards: Complies with EN/IEC60947-3 standards, guaranteeing high-quality performance and safety.

The OMG1-125 isolating switch is the perfect solution for reliable and efficient power control in residential and commercial settings. With its versatile configurations, robust protection features, and compliance with international standards, it ensures dependable operation and safety.

Specification

Number of Poles	1P,2P,3P,4P
Rated Current (A)	50,63, 80, 100,125
Rated Voltage (V)	1P:240/415 2,3,4P: 415
Rated Frequency (Hz)	50/60
Utilization Category	AC-22A
Icw	12le,t=0.1s
Rated Short-circuit Making Capacity Icn	20le, t=0.1s
Rated Making & Breaking Capacity	3le, 1.05Ue, COSΦ=0.65
Rated Insulation Voltage Ui (V)	690
Rated Impulse Withstand Voltage Uimp (V)	4000
Electrical Life (times)	1 500
Mechanical Life (times)	1 0000
Terminal Capacity	Cables up to 50mm²
Ambient Temperature (°C)	-25~+45, Max.95% humidity
Storage Temperature (°C)	-40~+75
Altitude (meters)	Max. 2000
Protection Degree	IP20
Installation	Mounting on 35mm Din Rail

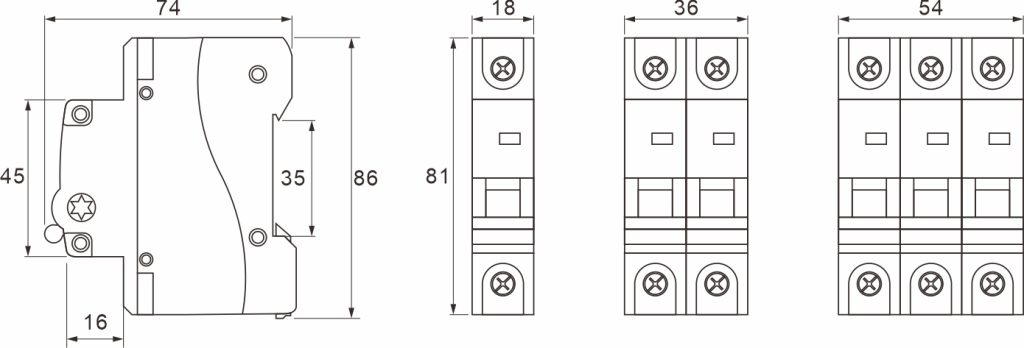

Width	18mm per Pole
Standard	EN/IEC60947-3
Upper Wiring Lower Wiring	1-25mm²
